Silicon Labs EFR32MG21 Zigbee 3.0 USB Dongle for Smart Home Hubs and Gateways

This compact USB device serves as a Zigbee 3.0 radio coordinator, designed to integrate wireless sensor and device networks with popular smart home software platforms. Its core function is to translate Zigbee protocol messages to and from a USB serial connection, acting as the central radio for a personal area network. Based on the Silicon Labs EFR32MG21 system-on-chip, it is pre-configured with EZSP v8 firmware, aiming for compatibility with standards-based Zigbee devices. The primary use case is within Home Assistant using the ZHA integration or with the Zigbee2MQTT bridge software, though compatibility with other gateway solutions adhering to Zigbee standards may be possible. It arrives ready to use, requiring only connection to a host computer and software configuration to begin building a local Zigbee mesh network.

Features and Construction

The dongle's functionality is defined by its specific hardware components and pre-loaded software, designed for reliable communication in the 2.4 GHz ISM band. Its construction focuses on providing a stable radio link for home automation networks without requiring external power or complex antenna setup.

Material and Build

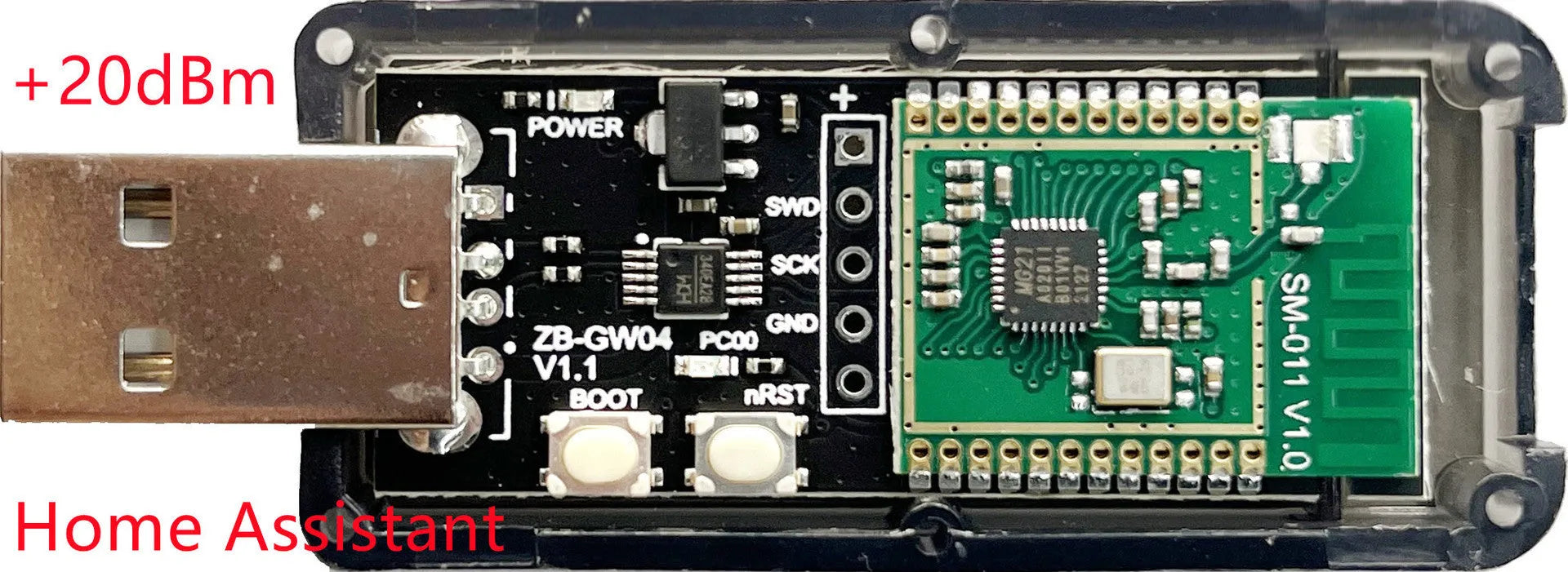

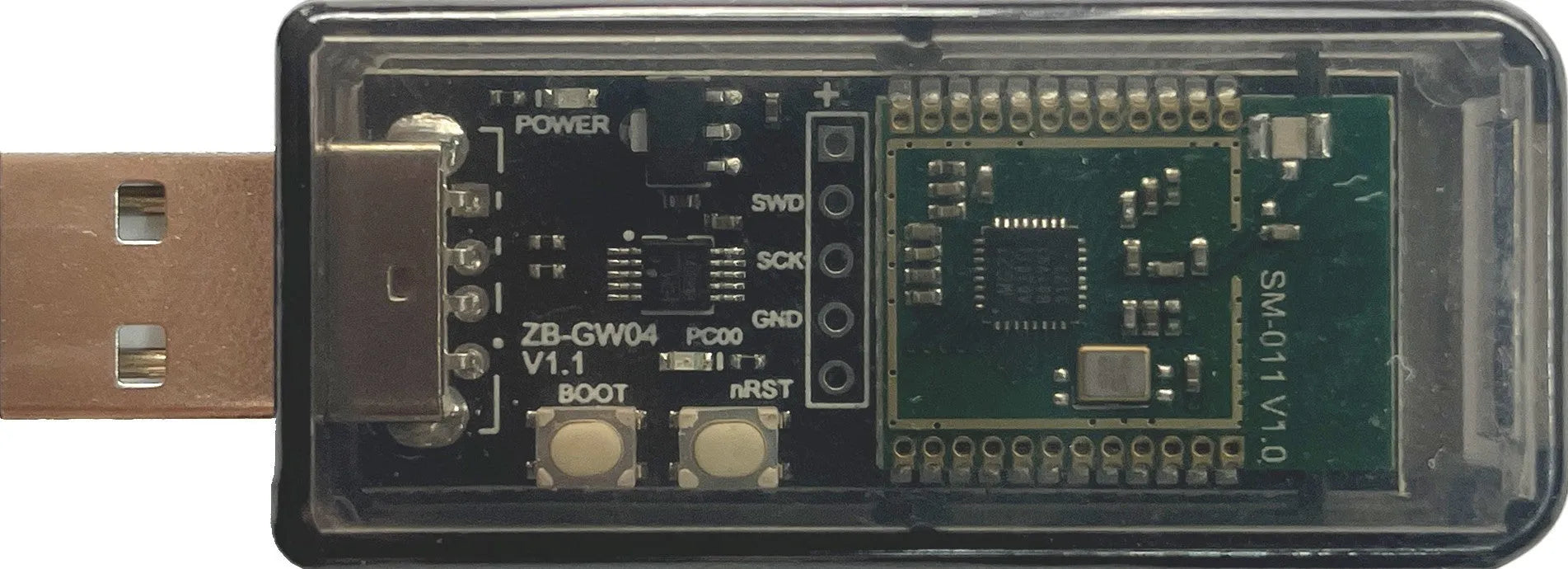

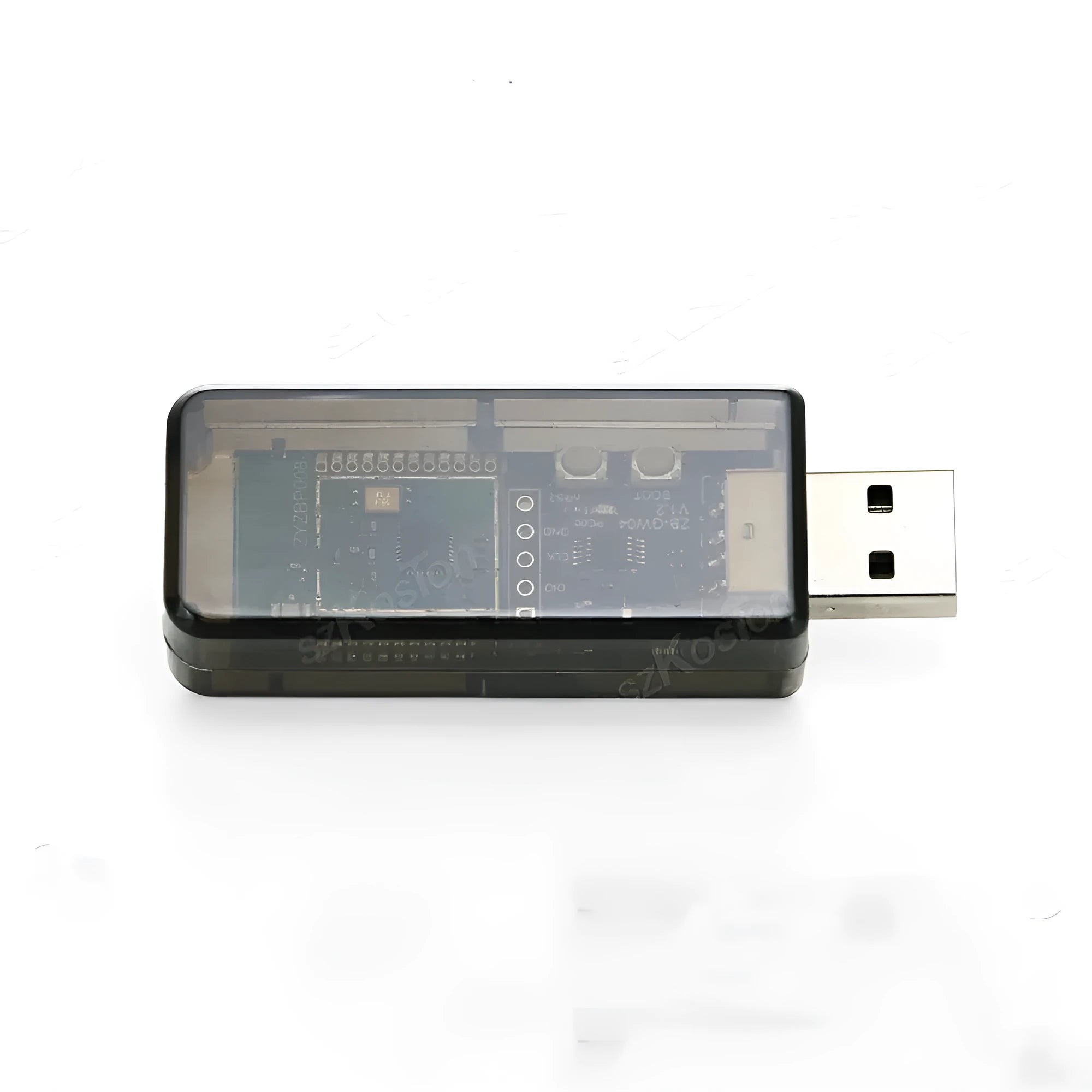

The device is housed within a white plastic shell, which encloses the main printed circuit board (PCB). This PCB hosts the primary electronic components: the Silicon Labs EFR32MG21 microcontroller, which contains the radio transceiver and processing core for the Zigbee stack, and the CH340E chip, which handles USB-to-serial conversion. The use of a CH340E interface chip is a common design for providing a virtual COM port over USB, ensuring broad driver compatibility across operating systems. The overall build is typical of a small-form-factor USB accessory, prioritising a plug-and-play physical interface.

Size and Practical Fit

The product is described as a USB dongle, implying a compact form factor designed to be plugged directly into a USB port on a computer, server, or single-board computer like a Raspberry Pi. Its size is not specified numerically, but the 'dongle' designation suggests it is small enough to remain plugged in without excessive strain on the port or significant physical obstruction. This makes it suitable for discrete placement near the host device, such as on a home server or network appliance. The integrated PCB antenna means no external antenna needs to be fitted or positioned, simplifying installation and reducing clutter.

Uses and Placement

This device acts as the coordinator for a Zigbee network, a role essential for creating a local mesh of compatible smart home devices like sensors, lights, and switches. Its utility is realised through software that can communicate with it via its serial protocol.

Event or Professional Use

For users running dedicated home automation software like Home Assistant, this dongle provides the radio hardware needed to directly manage Zigbee devices without relying on a proprietary vendor hub. It enables the creation of a local, independent smart home network where device communication does not depend on cloud services. The support for ZHA (Zigbee Home Automation) in Home Assistant and the pre-alpha status support for Zigbee2MQTT indicate its use in enthusiast and advanced DIY smart home setups. The +20dBm output power can help extend the initial range of the mesh network, which is then further expanded by router-capable devices within the mesh.

Everyday Home Use

Once configured, the dongle operates in the background, translating commands from the host software into Zigbee radio signals and vice versa. It allows users to add a wide variety of Zigbee-certified devices from different manufacturers into a single, unified system controlled via their chosen software interface. The plastic shell and integrated design mean it has no moving parts and requires no end-user maintenance under normal conditions. Its operation is contingent on the host software (e.g., Home Assistant) running continuously to maintain the network and process device states and events.

Benefits and Buying Value

The value of this product lies in providing a specific, pre-configured hardware component that fills a known need within certain tech enthusiast communities, namely a local Zigbee coordinator for open-source home automation platforms.

Reuse and Low Maintenance

The device is designed for continuous operation as a network coordinator. Its firmware can be updated via the described UART OTA process, which involves a specific button sequence (holding BOOT, then pressing and releasing nRST), allowing for potential feature updates or bug fixes from the community or developers. This extends its usable lifespan beyond its initial firmware version. As a solid-state electronic device with a simple plastic enclosure, it requires no routine maintenance, cleaning, or consumable parts, contributing to a low total cost of ownership after the initial purchase.

Why Choose This Product

This dongle is specified for users who have identified a need for an EFR32MG21-based coordinator pre-loaded with EZSP v8 firmware, typically for compatibility with specific software setups like newer versions of ZHA. The +20dBm output gain is a concrete specification that may be preferable over lower-power alternatives for improving initial signal strength. The inclusion of a CH340E for USB connectivity offers a widely supported interface. The choice centres on these technical specifications matching the requirements of the user's intended software stack, rather than on broader, unsupported claims about performance or quality.
