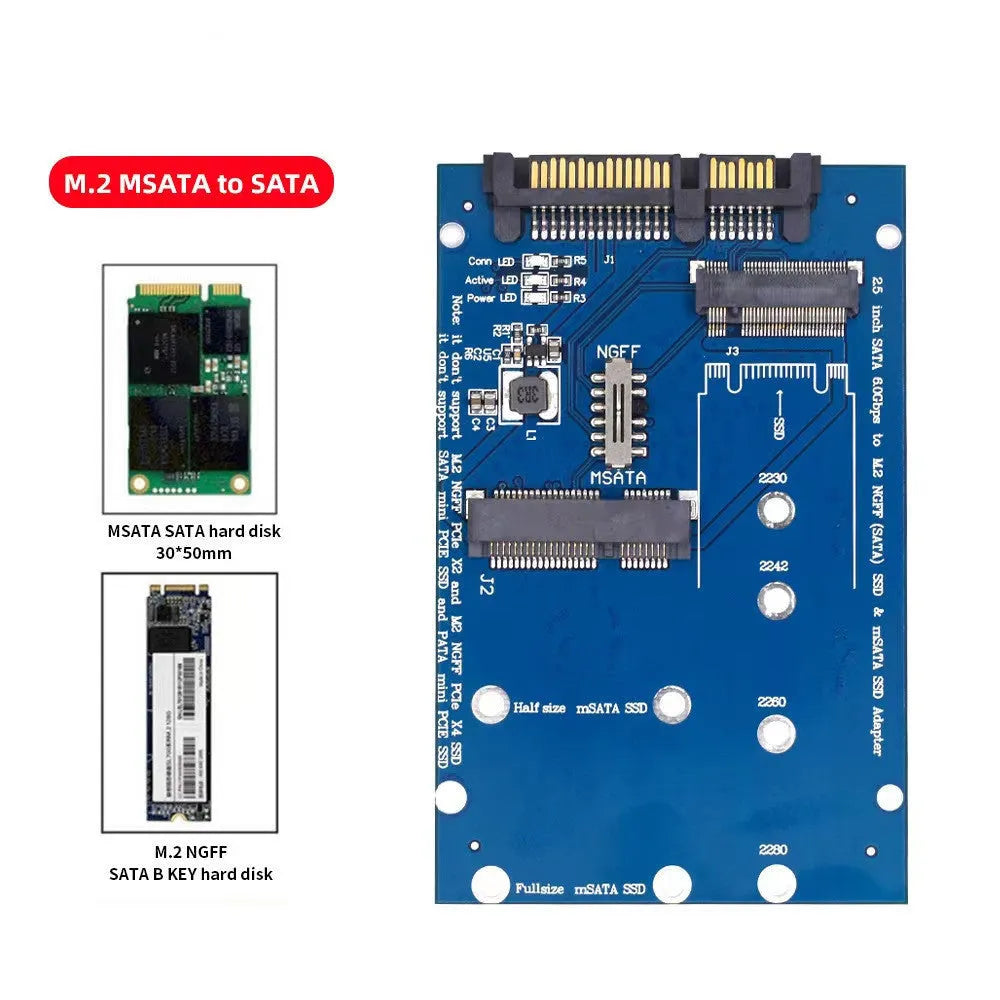

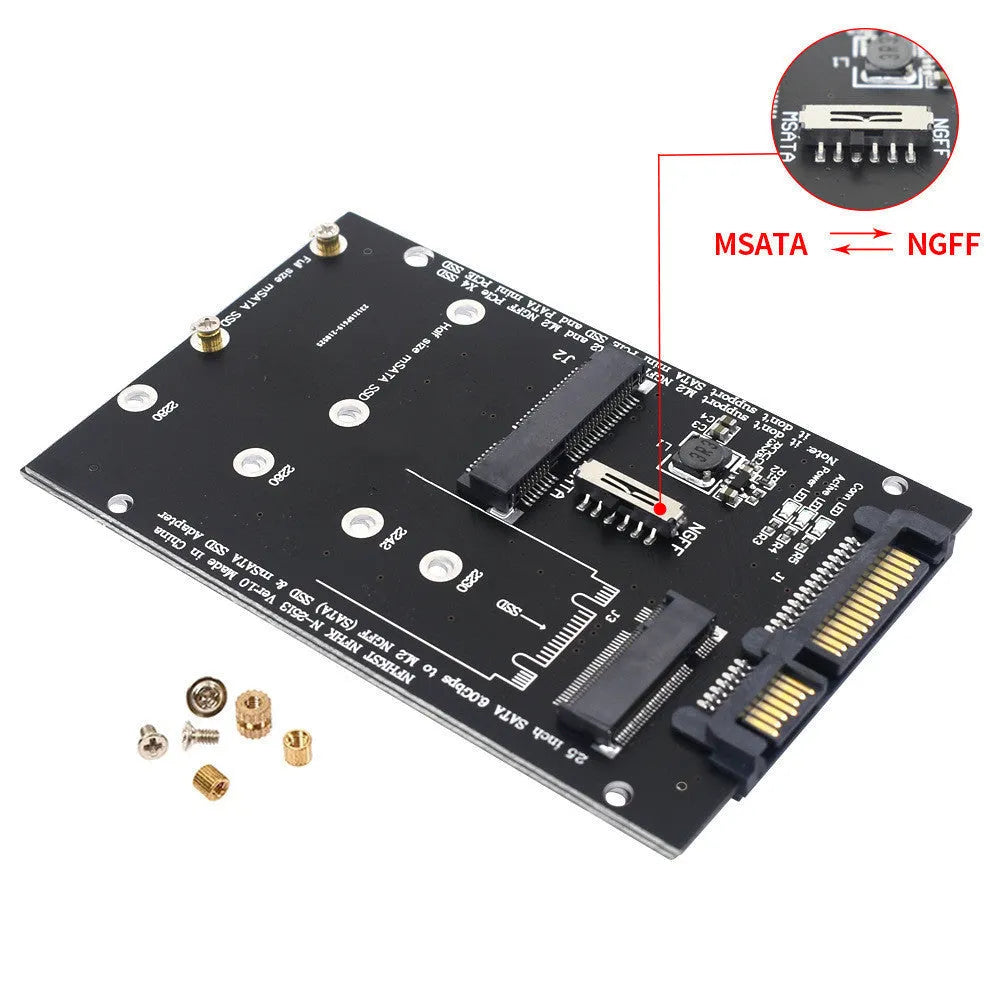

SATA 3 to M.2 NGFF mSATA SSD Adapter Card for 2.5-inch Drive Bay Installation

This adapter card serves a specific and practical function in desktop PC builds and upgrades: it allows you to utilise a modern M.2 SATA SSD (also known as NGFF SATA) in a location designed for a traditional 2.5-inch SATA drive. It acts as a physical and electrical bridge, converting the standard SATA data and power connectors found on a motherboard or from a power supply into the compact edge connector required by an M.2 SSD. This is particularly useful for systems with available 2.5-inch bays but limited or no dedicated M.2 slots on the motherboard, enabling users to benefit from the smaller form factor of M.2 drives without requiring a specific motherboard upgrade. The product is available in either a black or blue printed circuit board finish and is supplied individually in protective packaging.

Features and Construction

The core purpose of this adapter is conversion, enabling compatibility between two distinct storage interfaces. Its design is centred on a printed circuit board (PCB) that hosts the necessary connectors and likely a small amount of circuitry to manage the signal translation between the SATA port and the M.2 socket. The available data indicates support for the most common M.2 SSD lengths that use the SATA protocol, providing flexibility for different drive sizes a user may own or purchase.

Material and Build

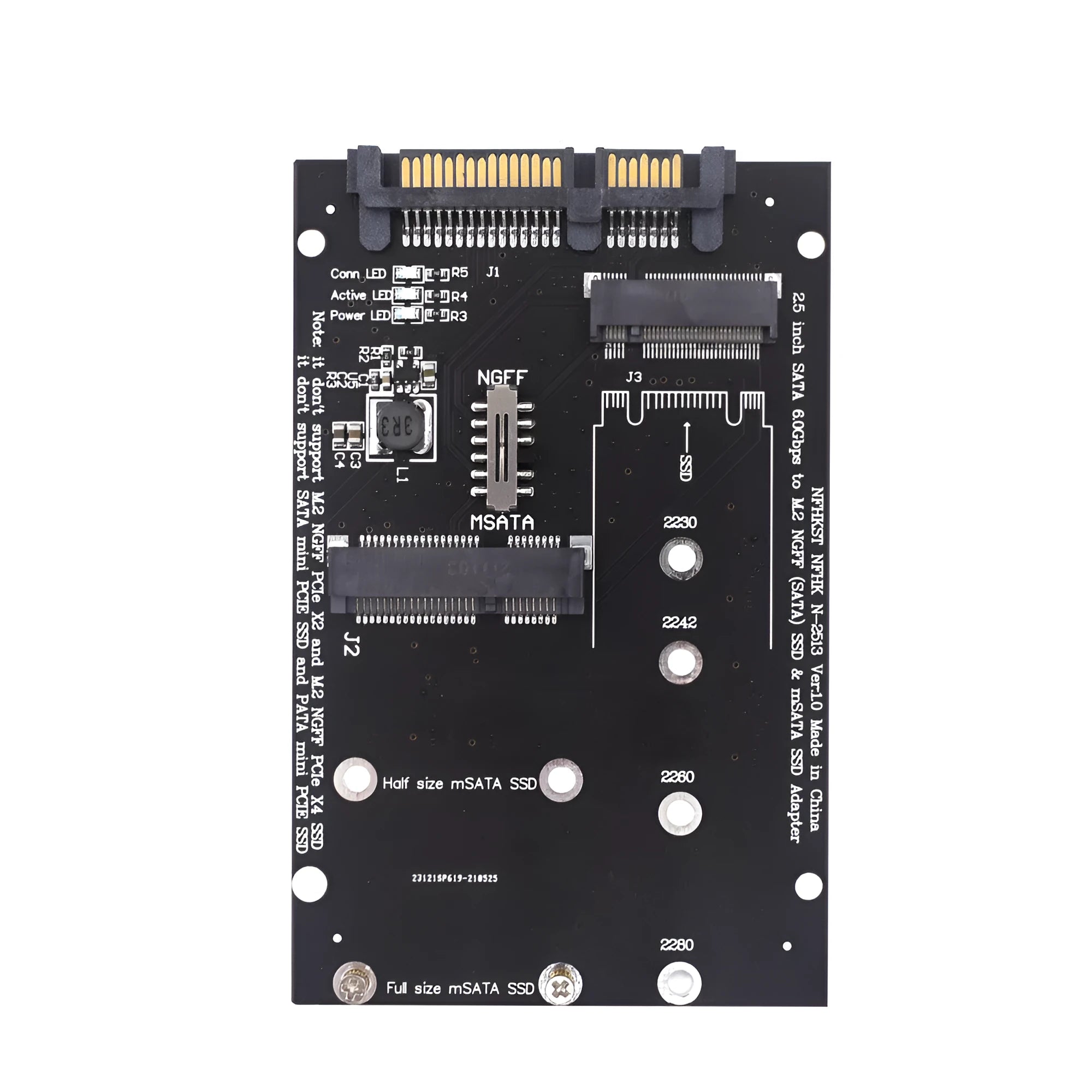

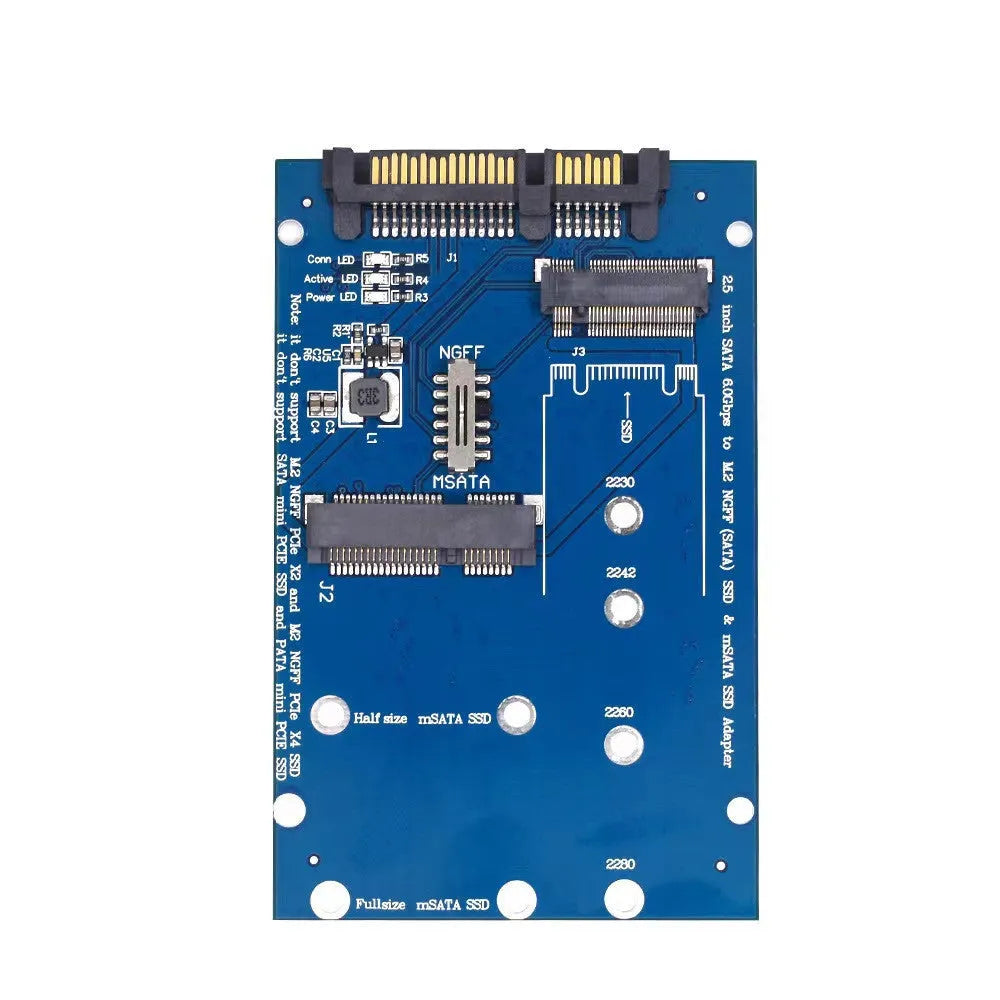

The adapter is built upon a standard printed circuit board (PCB). The source text specifies that the board itself is available in either a black or blue colour, referring to the solder mask colour of the PCB. This is a visual detail rather than a performance specification. The product is described as an 'adapter board' or 'switchboard', indicating its primary component is this PCB with attached connectors. It is supplied in an electrostatic bag, which is a standard protective measure for electronic components to prevent damage from static electricity during handling and shipping.

Size and Practical Fit

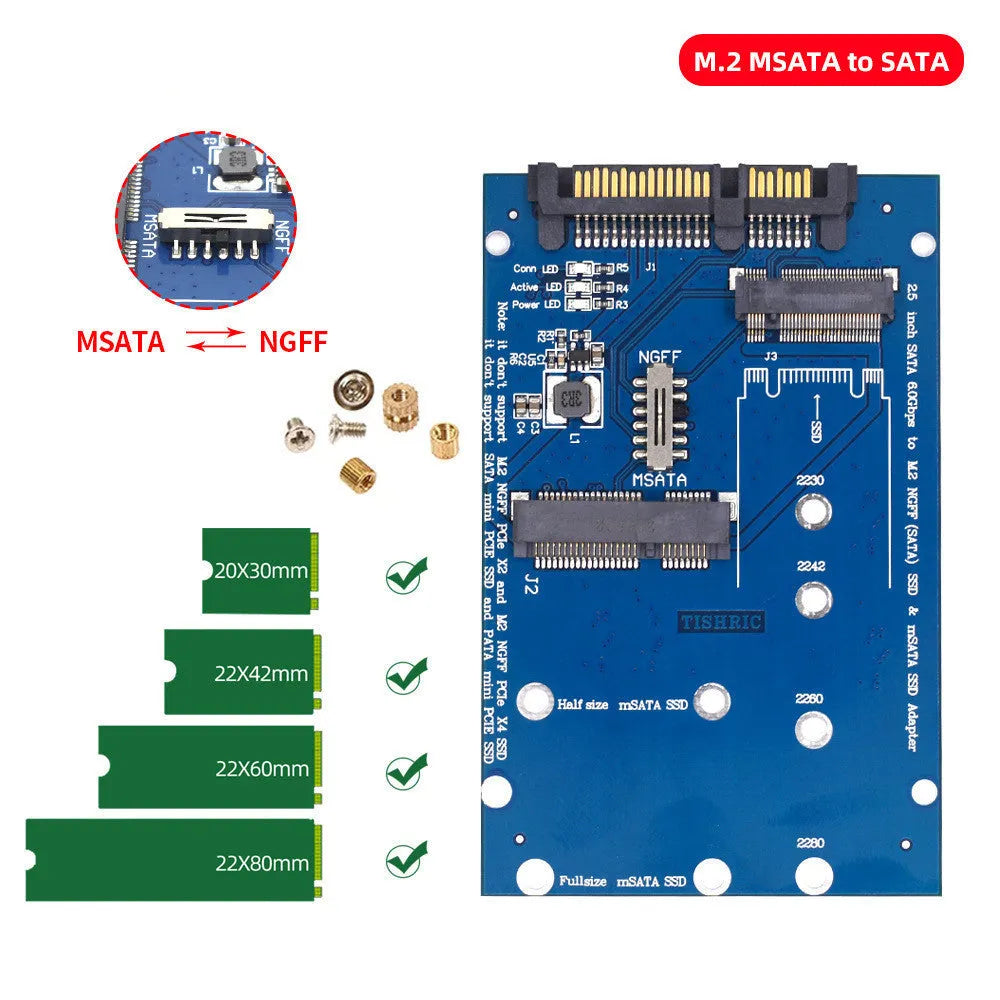

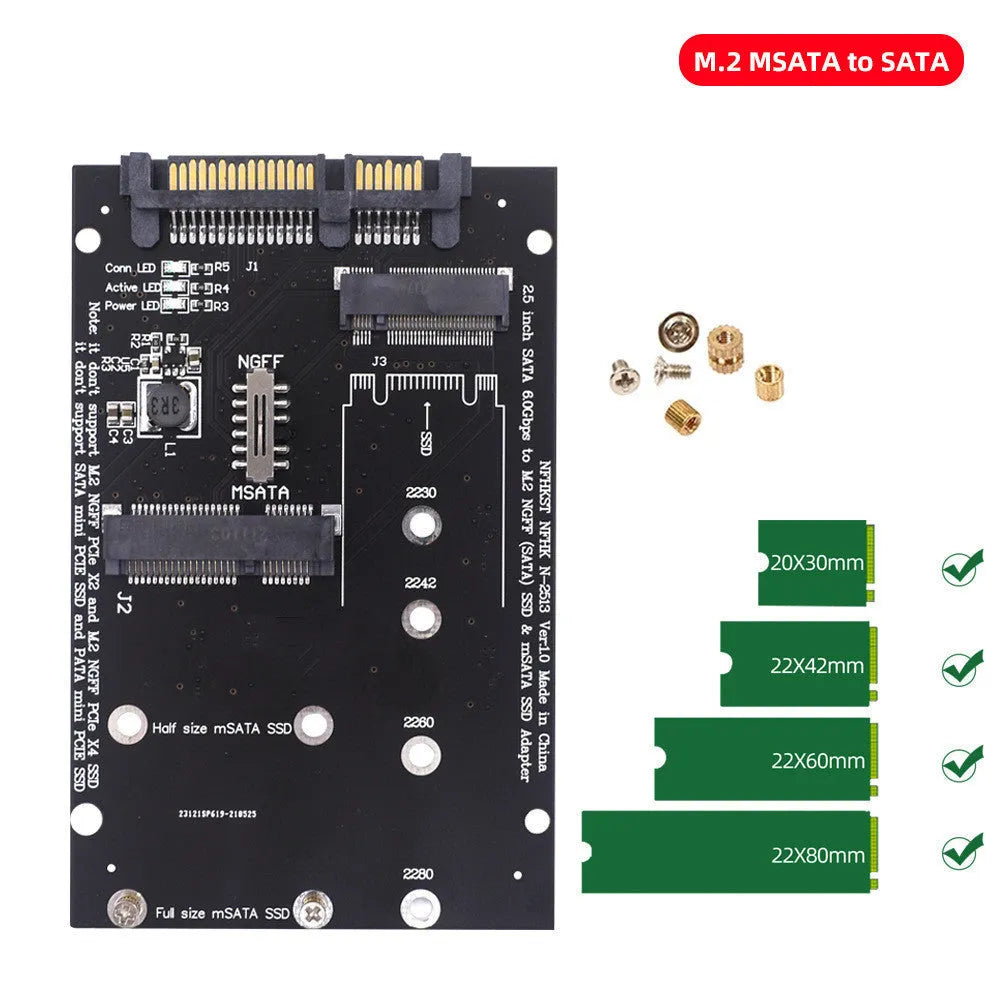

The adapter is designed to facilitate the installation of an M.2 SSD into a standard 2.5-inch drive bay, a common size used for laptop hard drives and SSDs in desktop cases. It supports M.2 SSDs in the 2280 (80mm), 2260 (60mm), 2242 (42mm), and 2230 (30mm) form factors, as long as they utilise the SATA (NGFF) interface and not the faster NVMe (PCIe) protocol. This covers a wide range of commercially available SATA M.2 drives. The physical dimensions of the adapter board itself are not provided, but its function implies it will fit within the confines of a 2.5-inch bay once an M.2 drive is attached.

Uses and Placement

This adapter addresses a clear compatibility gap in PC hardware. Its use is almost entirely practical, solving the problem of connecting a newer type of storage device to an older or differently equipped system interface. It finds its place in desktop computer environments where expansion and reuse are key considerations.

Event or Professional Use

In a professional or workshop setting, such an adapter can be a useful tool for data recovery technicians or system integrators working with a variety of client hardware. It allows a standardised test bench with 2.5-inch bays to accept and test M.2 SATA drives pulled from different systems. For PC builders creating systems with specific storage configurations—for instance, using all motherboard M.2 slots for NVMe drives but still needing to incorporate additional SATA M.2 storage—this adapter provides a method to mount that extra drive in a chassis bay.

Everyday Home Use

For the home user upgrading their personal desktop, this adapter enables the reuse of an M.2 SATA SSD from an old laptop in a new desktop build, or allows the addition of a cost-effective M.2 SATA SSD for extra game or media storage without occupying a motherboard M.2 slot that might be reserved for a faster NVMe boot drive. It simplifies the process by using familiar SATA power and data cables, avoiding the need for specialised M.2 cables or brackets that some cases require.

Benefits and Buying Value

The value of this product lies in its specific function and the flexibility it grants. It does not enhance the performance of the connected SSD but ensures the SSD can be physically connected and powered in a compatible environment. Its benefits are grounded in practicality and system compatibility.

Reuse and Low Maintenance

A primary benefit is enabling the reuse of existing M.2 SATA SSDs in new systems, extending the useful life of that component. The adapter itself requires virtually no maintenance; it is a passive electronic component with no moving parts. Once installed correctly, it should function without issue barring physical damage. The electrostatic bag packaging suggests care should be taken during initial handling to prevent static discharge, which is standard for any circuit board.

Why Choose This Product

You would choose this SATA to M.2 adapter if you have a specific, source-supported need: you own an M.2 SSD that uses the SATA (NGFF) protocol, and you need to install it into a desktop computer that has available 2.5-inch drive bays and SATA connectors but lacks a dedicated M.2 slot. Its support for multiple drive lengths (2280, 2260, 2242, 2230) adds to its versatility. If your drive is NVMe-based or if your system already has sufficient M.2 slots, this product would not be applicable. The choice of black or blue PCB colour is a minor aesthetic consideration.
