Right Angle Fixture Positioning Block: Aluminium Alloy Clamp for 90-Degree Woodworking Jigs

This right angle fixture positioning block addresses a fundamental need in woodworking and carpentry: achieving perfectly square 90-degree cuts and joints with consistency. Designed specifically as a fixing clamp for use with jigsaws and other workshop tools, it provides a physical reference square to guide your workpiece. The product’s value lies in its precise manufacturing and the inclusion of an accurate measurement scale, moving beyond a simple block to become a multifunctional alignment tool. Built from aluminium alloy, it offers a durable and stable base for a variety of clamping scenarios, from assembling small boxes to ensuring mitre joints are true.

Features and Construction

The construction of this positioning block is centred on precision and practical functionality. Every aspect, from the choice of material to the etched scale, is geared towards providing a reliable reference point in your workshop.

Material and Build

The block is constructed entirely from aluminium alloy 6061. This material is selected for its favourable strength-to-weight ratio, resistance to corrosion, and machining properties, making it a common choice for precision tools and fixtures. In this application, it provides a rigid, non-flexing surface against which workpieces can be clamped, ensuring the 90-degree angle is maintained under pressure without deflection. The quality assurance mentioned in the source indicates a focus on manufacturing tolerances, resulting in a block with square, true corners essential for its function.

Size and Practical Fit

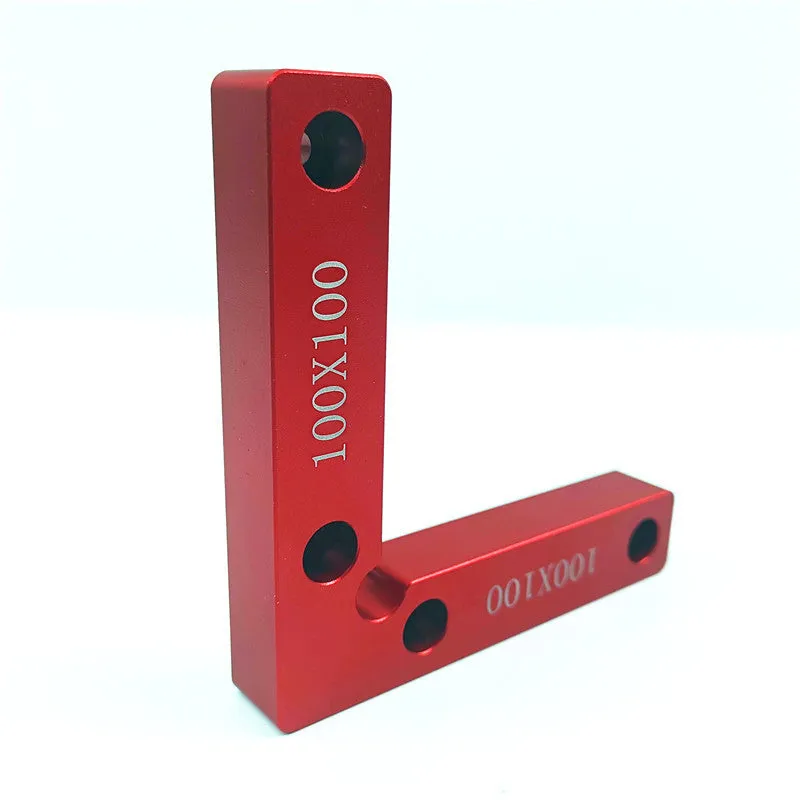

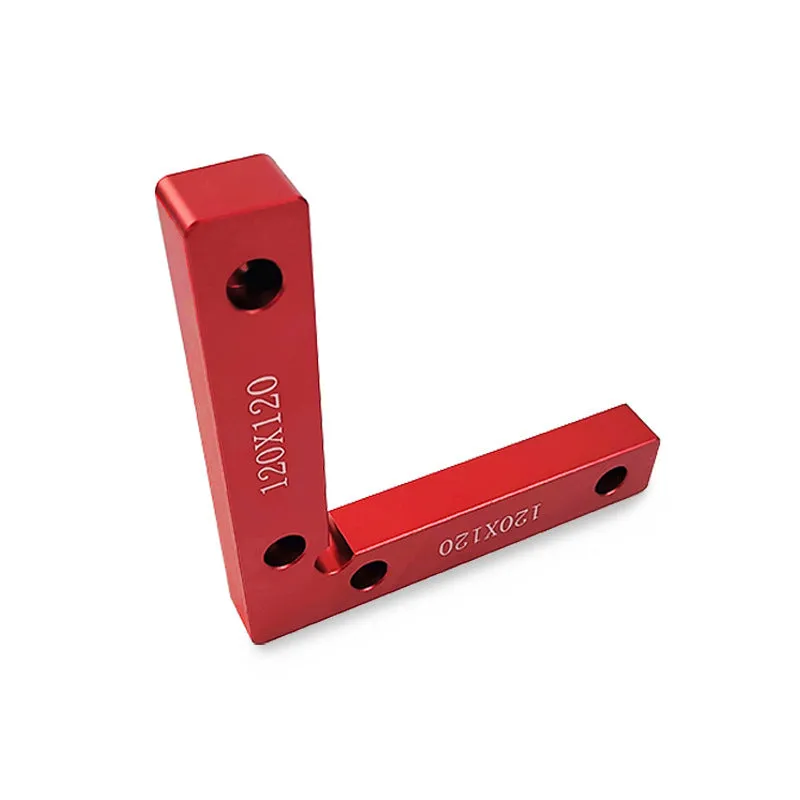

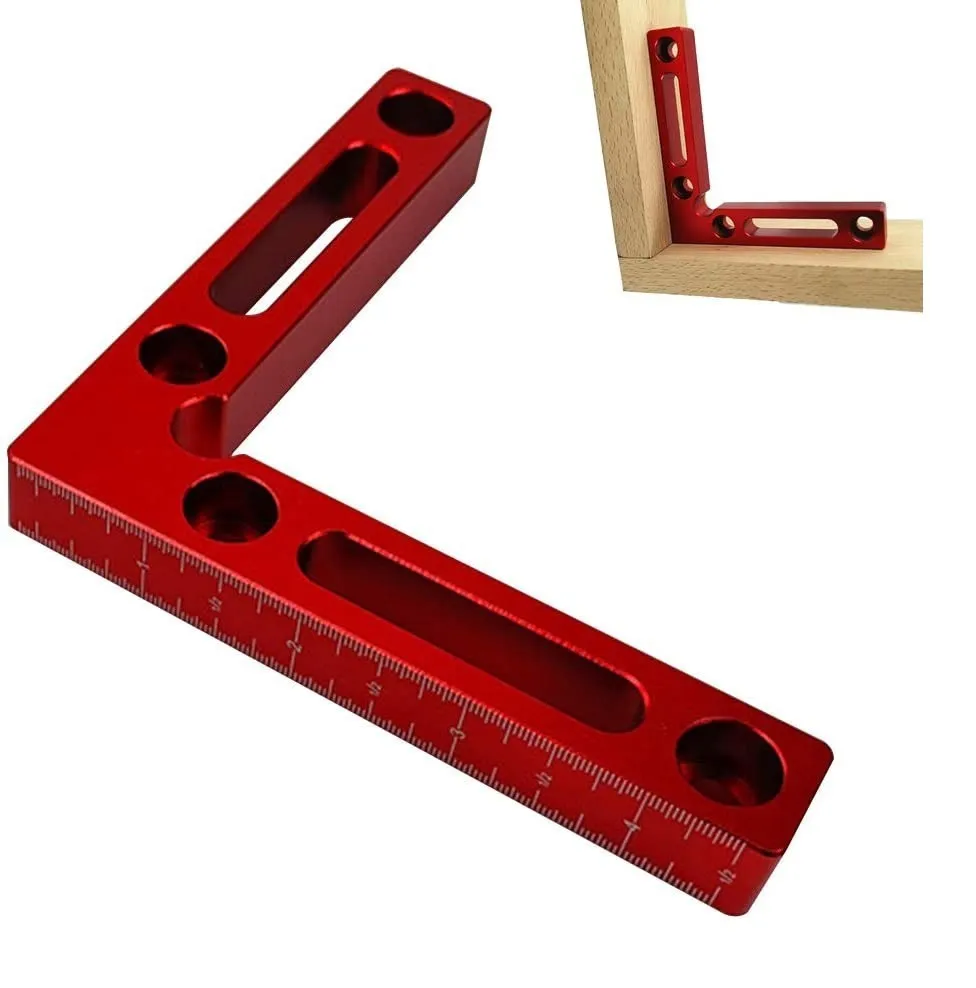

The block is offered in two primary square sizes: 100mm x 100mm and 120mm x 120mm. These dimensions refer to the legs of the right angle, providing a substantial contact area for clamping different sized materials. The overall footprint of the fixture is 40mm wide by 130mm long by 210mm high, making it a compact yet substantial tool that can be easily stored. The accurate scale etched along one or more edges transforms the block from a simple square into a measuring and marking guide, allowing you to set precise distances from the corner for repeatable operations.

Uses and Placement

This fixture is designed for scenarios where a guaranteed right angle is critical. Its application spans from professional workshop environments to serious DIY projects at home, acting as a foundational jig component.

Event or Professional Use

In a professional cabinet shop or for a tradesperson, this block can serve as a quick setup tool for batch-producing identical components. It can be integrated into a larger custom jig or used directly to square up frames, drawer boxes, or cabinet carcasses before assembly. The aluminium construction ensures it can withstand the frequent use and higher clamping forces typical in a professional setting. The measurement scale aids in setting stops for routing or drilling operations at consistent intervals from a corner.

Everyday Home Use

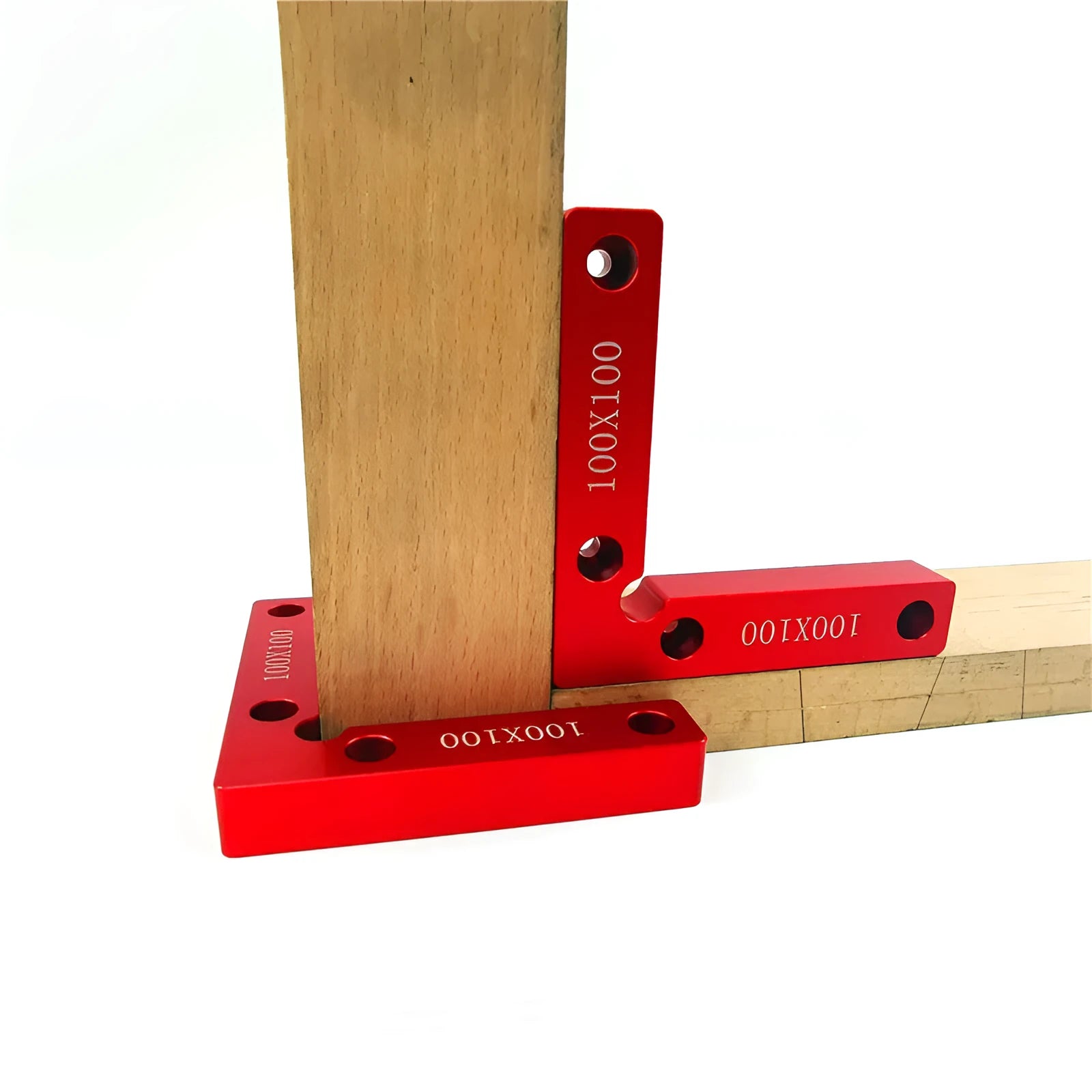

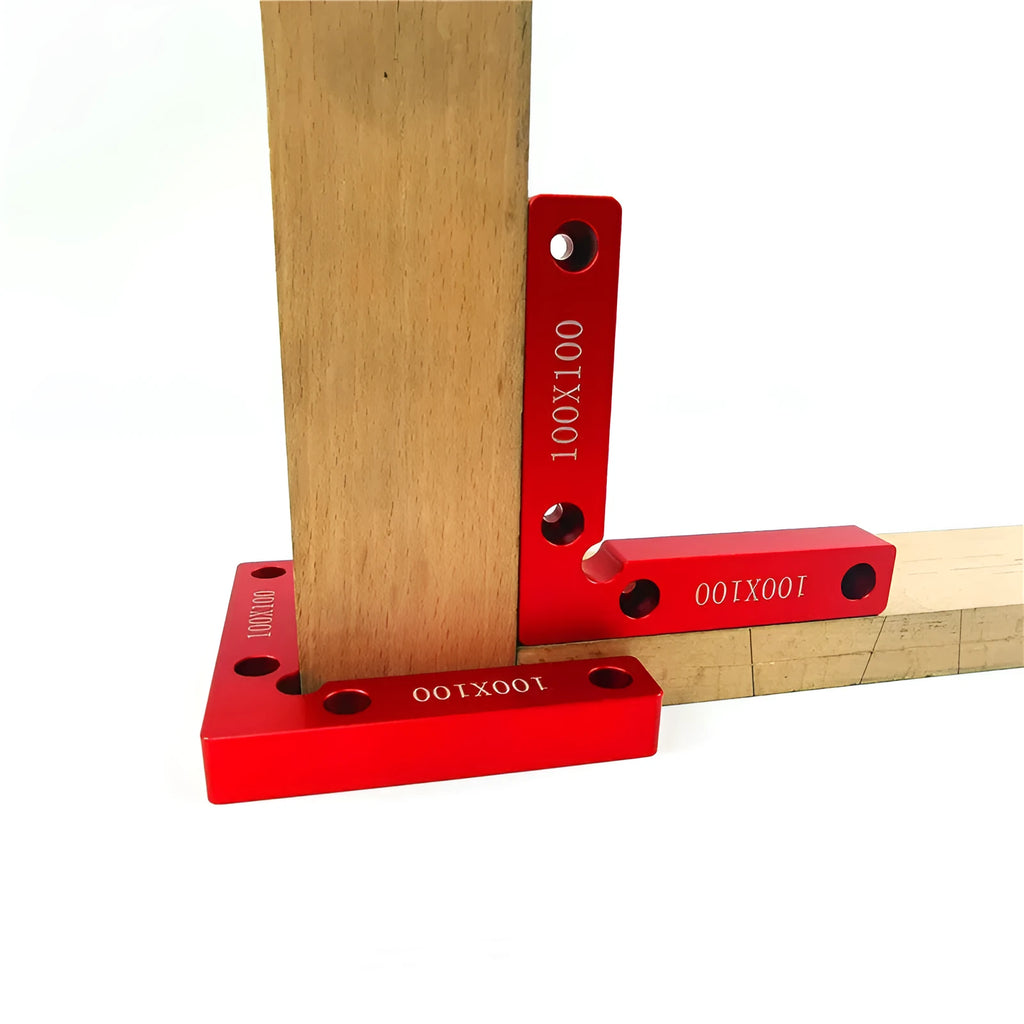

For the home woodworker, it simplifies projects like building bookshelves, picture frames, or small furniture where square corners are aesthetically and structurally important. It removes the guesswork and potential inaccuracies of trying to square items by eye or with a standard try square that isn't designed to be clamped. It is particularly useful when using a jigsaw or router with a guide fence, providing a reliable 90-degree reference to ensure the tool follows a perfectly perpendicular path.

Benefits and Buying Value

The value of this product is derived from its role as a dedicated, reusable tool that enhances accuracy and saves time. It represents a single-purpose solution for a common and critical workshop requirement.

Reuse and Low Maintenance

As a solid metal tool, this positioning block is built for long-term reuse across countless projects. Its low maintenance needs—primarily keeping it clean and free of debris—mean it will remain a ready-to-use fixture in your toolkit for years. Unlike disposable guides or makeshift blocks, it provides a permanent, accurate standard for 90-degree work, paying for itself over time through improved results and reduced material waste from inaccurate cuts.

Why Choose This Product

Choosing this aluminium right angle fixture means opting for a tool that combines several functions: a physical square, a clamping aid, and a measuring guide. Its primary advantage over simply using a combination square is its ability to be securely clamped in place, freeing both hands for workpiece handling and tool operation. The availability of two sizes allows you to select the block best suited to your typical project scale, offering a tailored solution for precise woodworking.
