Refrigerant Instrument Cluster for Automotive AC Systems with 80 cm Hoses and Brass Manifold

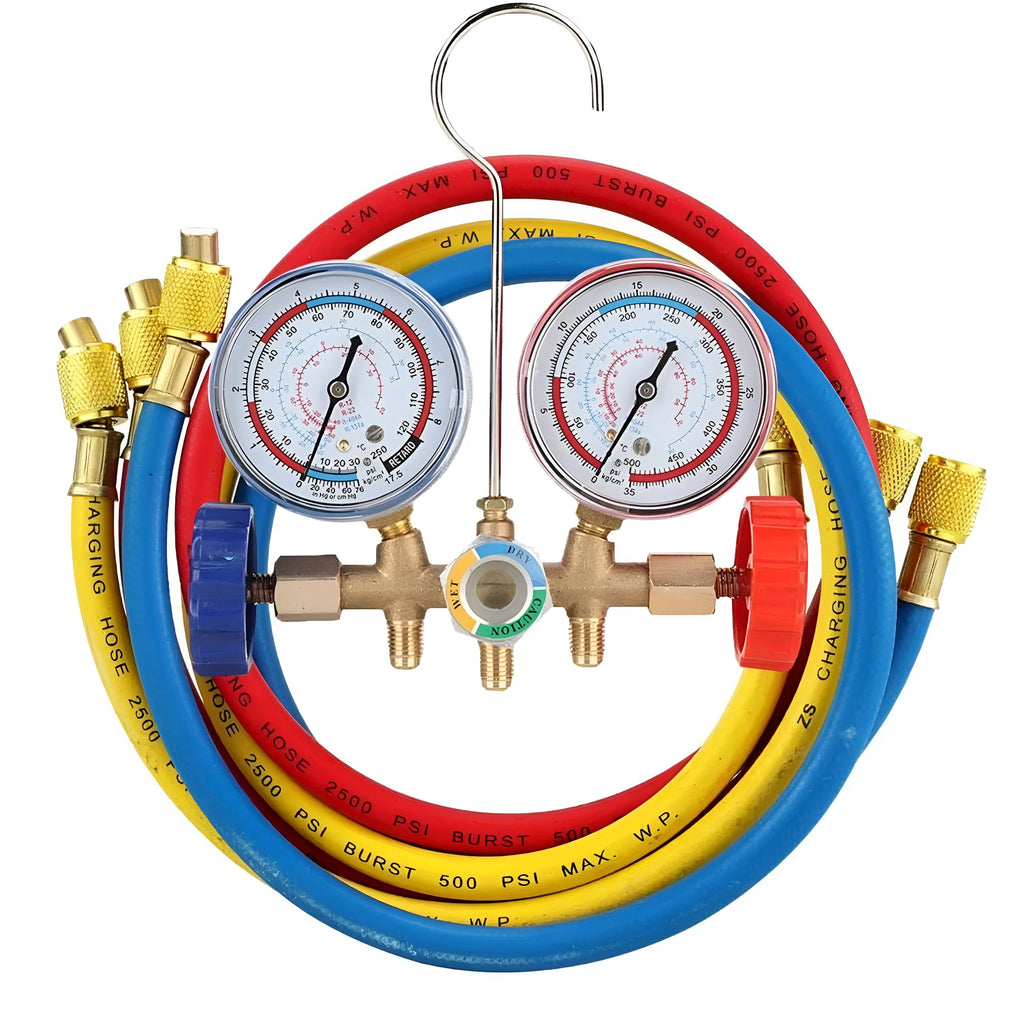

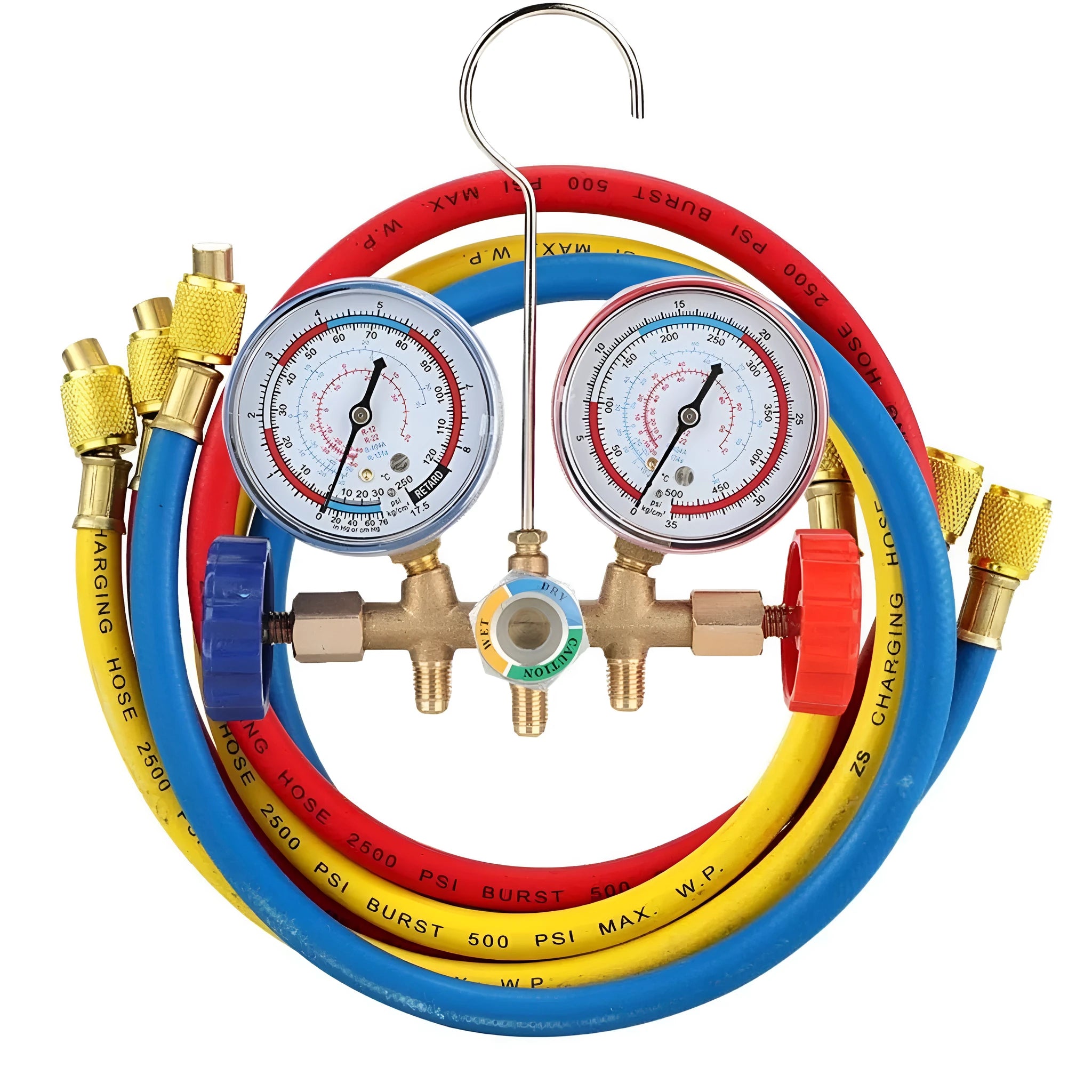

This refrigerant instrument cluster is a practical tool for testing, loading, and disposing of refrigerant in automotive and commercial air conditioning systems. It supports multiple refrigerant types including R12, R22, R404A, and R134a, making it versatile for different vehicles and refrigeration setups. The set includes a multi-tube pressure gauge, three colour-coded water pipes, and a hook for convenient hanging during use. With an operating pressure of 500 PSI and a working temperature range of -20°C to 60°C, it is built to handle typical servicing conditions. The brass two-track manifold ensures reliable connections, while the 7 cm measuring diameter provides clear readings.

Features and Construction

This instrument cluster combines practical features with solid construction for daily workshop use. The components are selected to provide clear pressure data and straightforward hookup to AC systems.

Material and Build

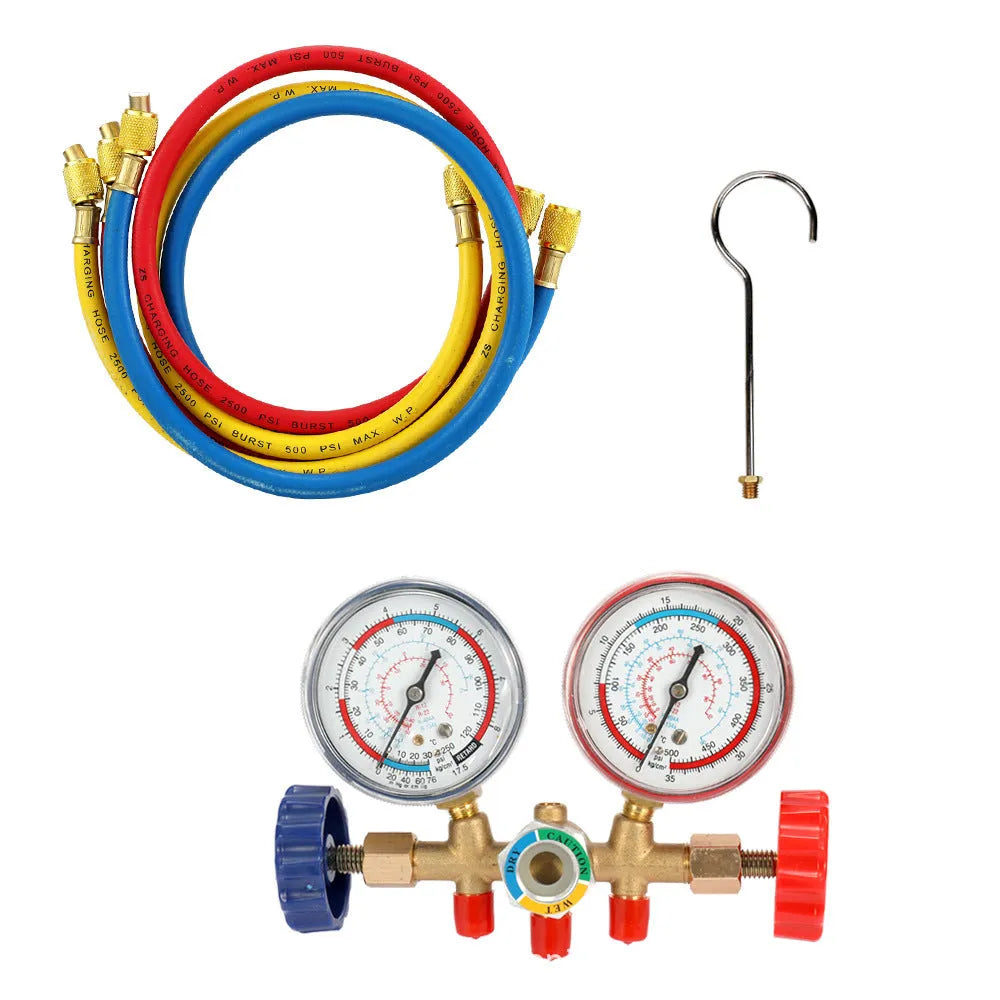

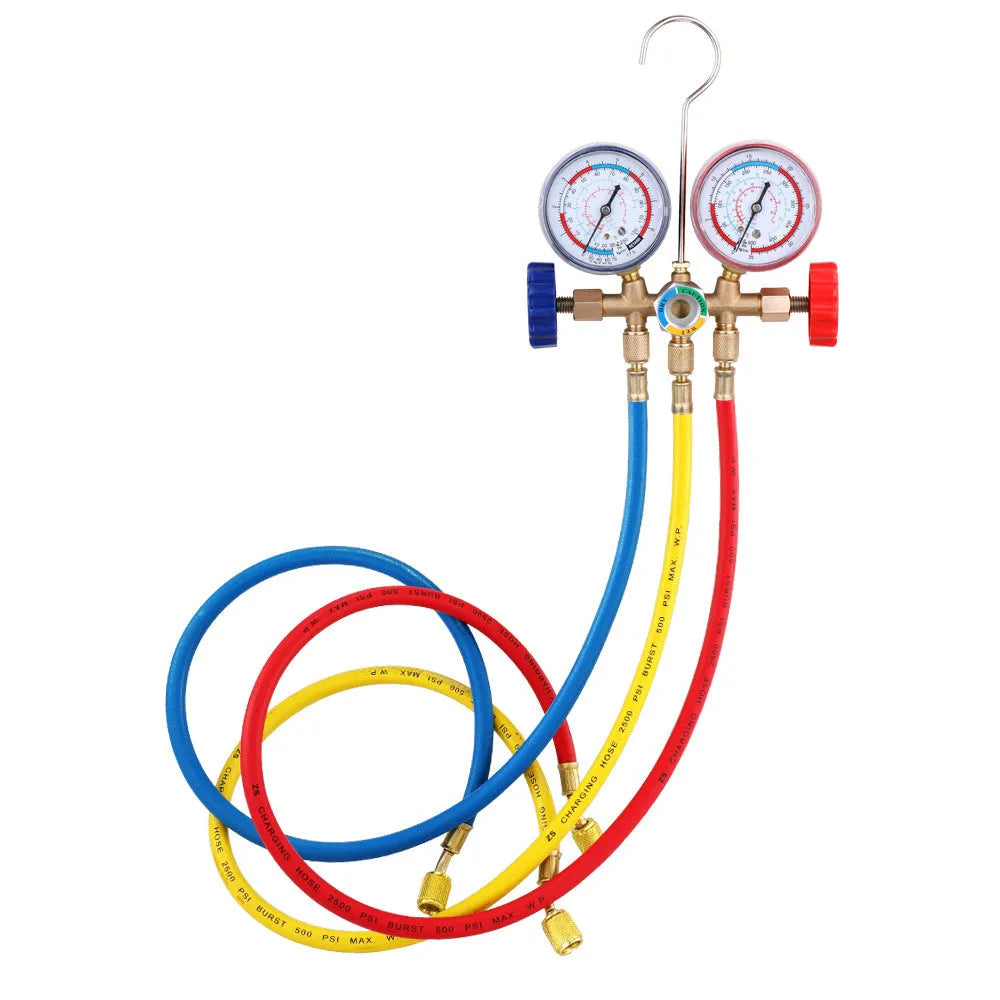

The manifold collector is made of brass, offering reliable service for repeated connections. The three water pipes are colour-coded in red, blue, and yellow for quick identification of high-pressure, low-pressure, and service ports. The hook is included to hang the unit during operation, keeping the work area tidy.

Size and Practical Fit

The measuring diameter is 7 cm, and each water pipe measures 80 cm in length, providing ample reach for typical vehicle AC service points. The packing dimensions are 23 x 17.5 x 9.5 cm, and the total package weight is 1015 g, making it portable enough to carry between jobs.

Uses and Placement

This refrigerant manifold gauge set is designed for use on a range of air conditioning systems. Its compatibility with popular refrigerants makes it suitable for both professional workshops and DIY enthusiasts working on family cars or commercial vehicles.

Event or Professional Use

Technicians servicing automotive AC systems will find the colour-coded valves and clear pressure scales helpful for efficient diagnostics. The unit can be used for checking system performance, charging refrigerant, or evacuating lines. The operating pressure of 500 PSI covers most standard AC service tasks.

Everyday Home Use

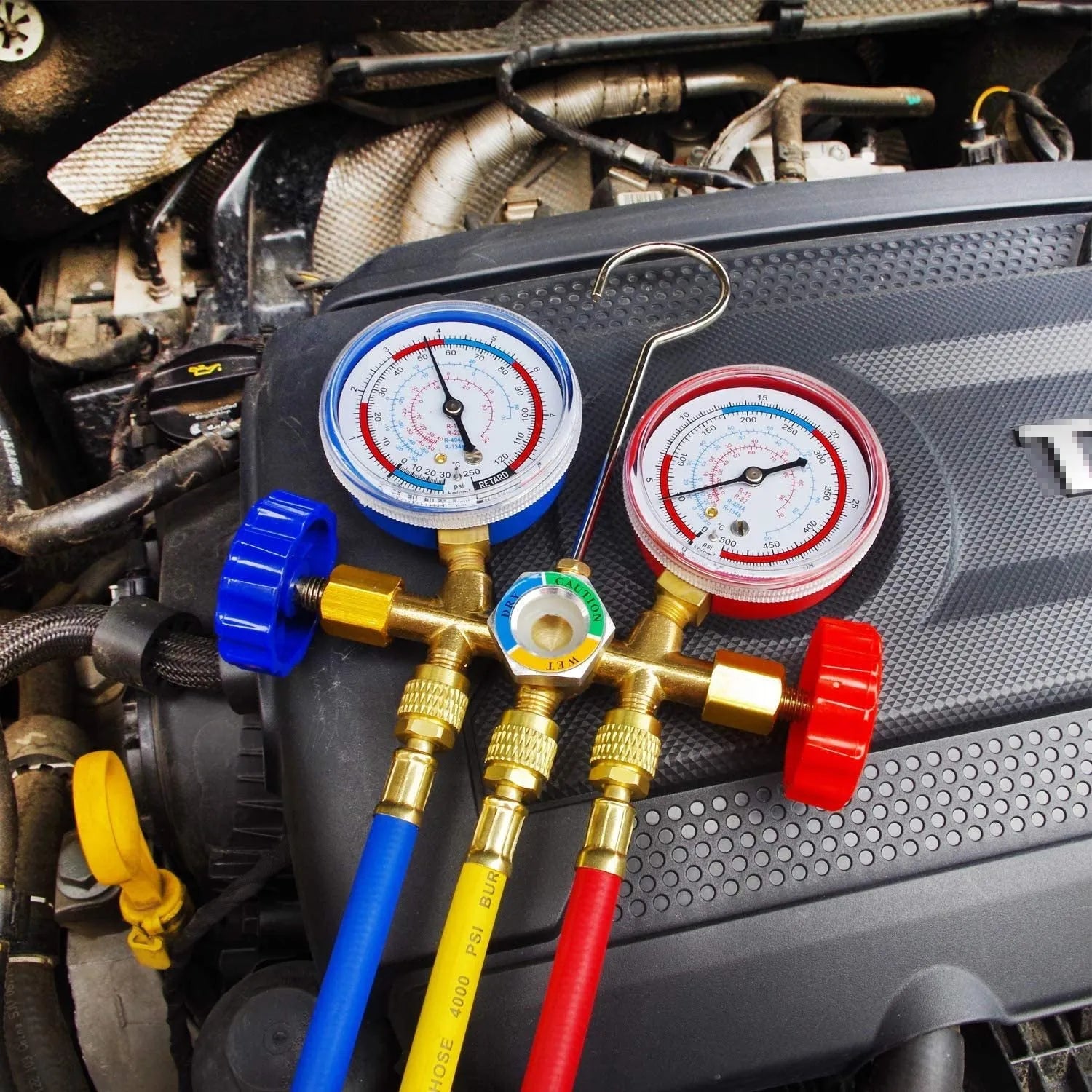

Home mechanics maintaining their own vehicle's air conditioning can rely on this set for basic refrigerant checks. The simple colour coding reduces confusion when connecting hoses, and the included hook allows the cluster to be hung near the engine bay, keeping the gauge at eye level.

Benefits and Buying Value

This tool offers a straightforward solution for AC service without unnecessary complexity. The key benefits centre on compatibility, ease of use, and robust construction.

Reuse and Low Maintenance

The brass manifold and durable hoses are built for repeated use in a workshop environment. With proper storage within the specified temperature range, the cluster can be used for many service cycles. No specialist cleaning is required beyond wiping down after use.

Why Choose This Product

With support for four common refrigerants, three colour-coded hoses at 80 cm each, and a hook for convenience, this instrument cluster covers the essentials for AC service. The 500 PSI operating pressure and 2500 PSI burst pressure offer a good safety margin for typical automotive systems.
