PWM DC Motor Governor: 5V-35V Speed Regulation with 5A Current Capacity and Compact Design

This PWM DC motor governor delivers precise speed control for motors requiring direct current operation between 4.5 and 35 volts. With its 0-5 ampere output current capacity and 90-watt power handling, this compact controller suits various low to medium power motor applications in hobbyist, educational, and light industrial settings. Measuring just 30 millimetres long by 26 millimetres wide and 14 millimetres high excluding the adjustment handle, the unit provides substantial control capability in minimal space. The 20kHz PWM frequency ensures smooth motor operation while the straightforward potentiometer knob adjustment allows users to change output duty ratio from 1% upwards, directly influencing motor speed without complex programming or setup requirements.

Features and Construction

This DC motor governor combines practical specifications with straightforward operation, making motor speed control accessible for various applications. The compact design belies its capable performance parameters, which support motors across a useful voltage range while maintaining energy efficiency.

Material and Build

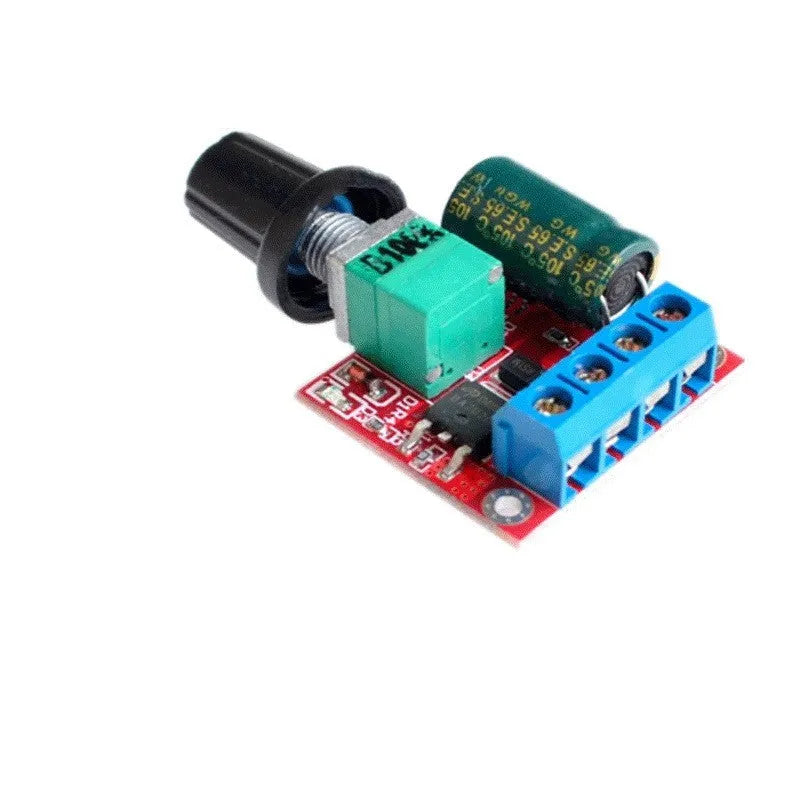

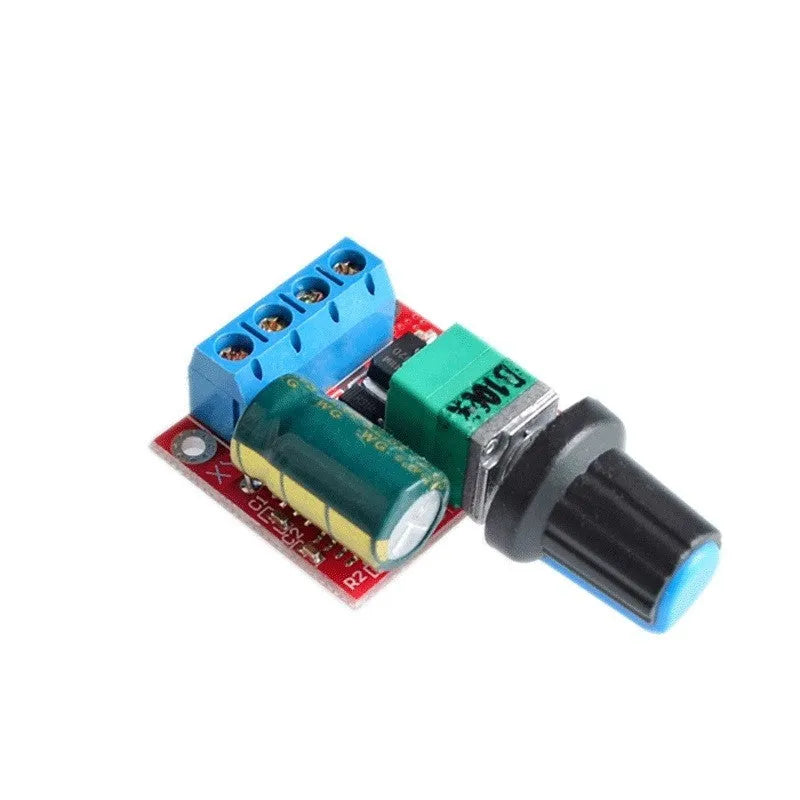

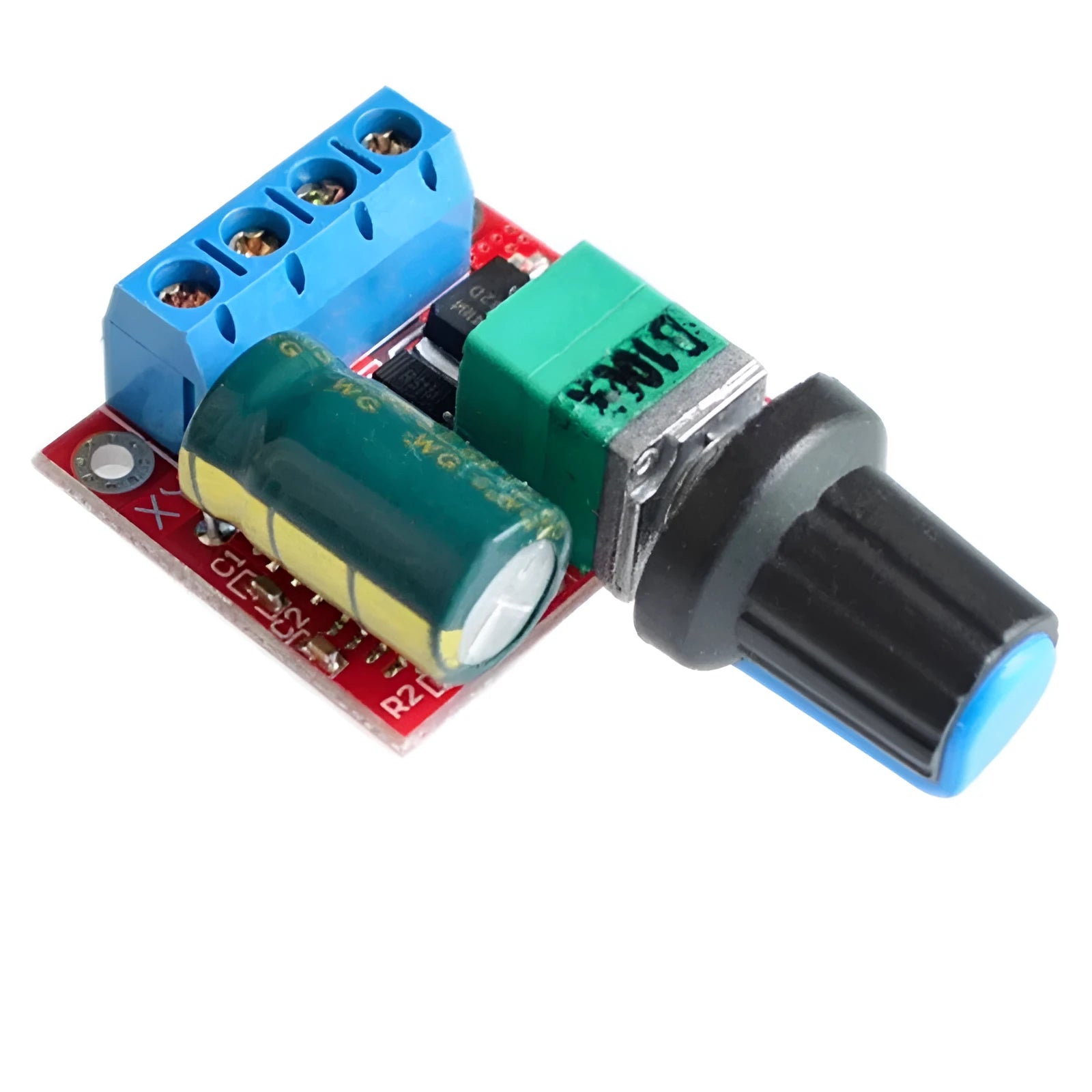

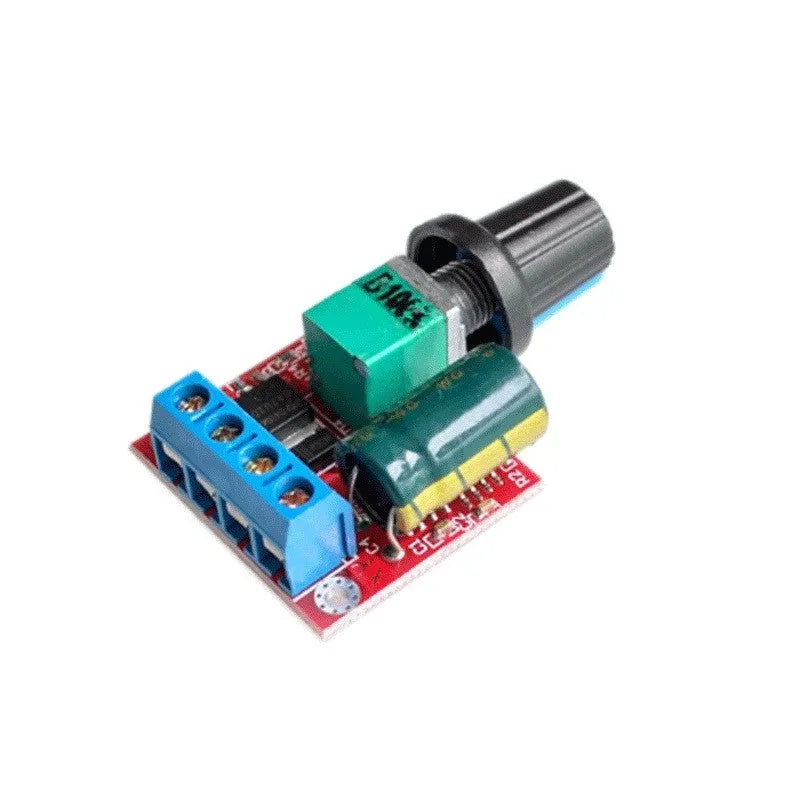

The governor incorporates electronic components including a PWM controller circuit mounted on a circuit board within a protective plastic casing. The adjustment handle attaches to a potentiometer that directly controls the output duty ratio, providing tangible speed regulation without digital interfaces. This physical control mechanism offers immediate feedback and adjustment capability, suitable for applications where quick speed changes might be required during operation.

Size and Practical Fit

With dimensions of 30 millimetres in length, 26 millimetres in width, and 14 millimetres in height excluding the adjustment handle, the governor maintains a footprint small enough for integration into compact projects or equipment. The modest physical size contrasts with its capable 90-watt power handling, allowing it to control motors substantially larger than its own dimensions might suggest. This size-to-performance ratio makes it suitable for applications where space is constrained but motor control requirements remain substantial.

Uses and Placement

The governor's 4.5V-35V operating range and 5A current capacity support diverse motor control scenarios, from small hobby projects to more demanding applications. Its straightforward operation via potentiometer knob adjustment makes it accessible even for those with limited electronics experience.

Event or Professional Use

In professional or event settings, this governor could control motors for display mechanisms, presentation equipment, or portable devices requiring variable speed operation. The 20kHz PWM frequency provides smooth control that reduces audible motor noise, potentially beneficial in environments where quiet operation matters. The unit's ability to handle up to 5A current makes it suitable for driving multiple smaller motors or single more substantial motors in exhibition, demonstration, or performance contexts.

Everyday Home Use

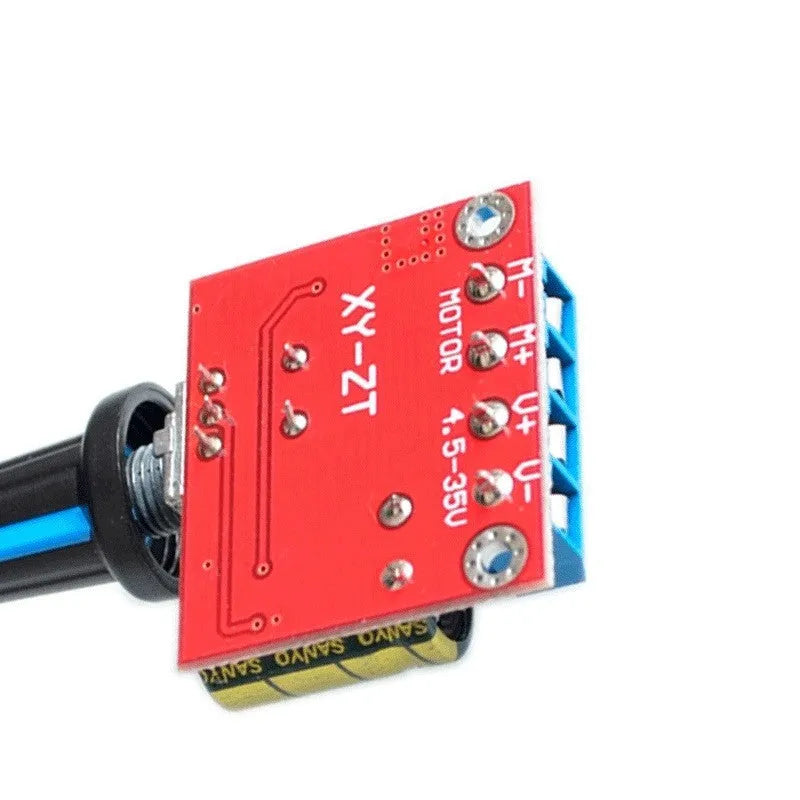

For home workshops, hobby projects, or educational purposes, this governor offers accessible motor speed control for applications like variable-speed tools, model making equipment, or custom automation projects. The straightforward wiring requirements—direct current input only with attention to correct polarity—simplify setup while the physical potentiometer knob provides intuitive control without digital programming. Home users can adjust motor speeds for optimal performance in applications ranging from ventilation fans to custom-built machinery.

Benefits and Buying Value

This motor governor combines practical specifications with reliable operation, offering control capabilities that suit various motor types and applications. Its design prioritises functionality and straightforward use over unnecessary complexity.

Reuse and Low Maintenance

The governor's solid-state design with minimal moving parts contributes to reliable operation over time, with the potentiometer representing the primary mechanical component subject to wear. With proper connection to appropriate DC power supplies and avoidance of AC mains connection or polarity reversal, the unit should provide consistent performance. The 7μA static current in standby state minimises power consumption when the governor is powered but not actively controlling a motor, potentially extending the life of battery-powered setups.

Why Choose This Product

This governor offers a balance of capable specifications—5V-35V range, 5A current capacity, 90W power handling—in a compact 30mm x 26mm x 14mm package. The 20kHz PWM frequency provides smooth motor control while the physical potentiometer adjustment delivers immediate speed regulation without digital interface requirements. For applications requiring reliable DC motor speed control without excessive complexity or space consumption, this unit provides practical functionality supported by clear operational parameters and straightforward connection requirements.
