OTDR Connector Interface Set with FC SC ST LC Adapters for Fibre Optic Testing

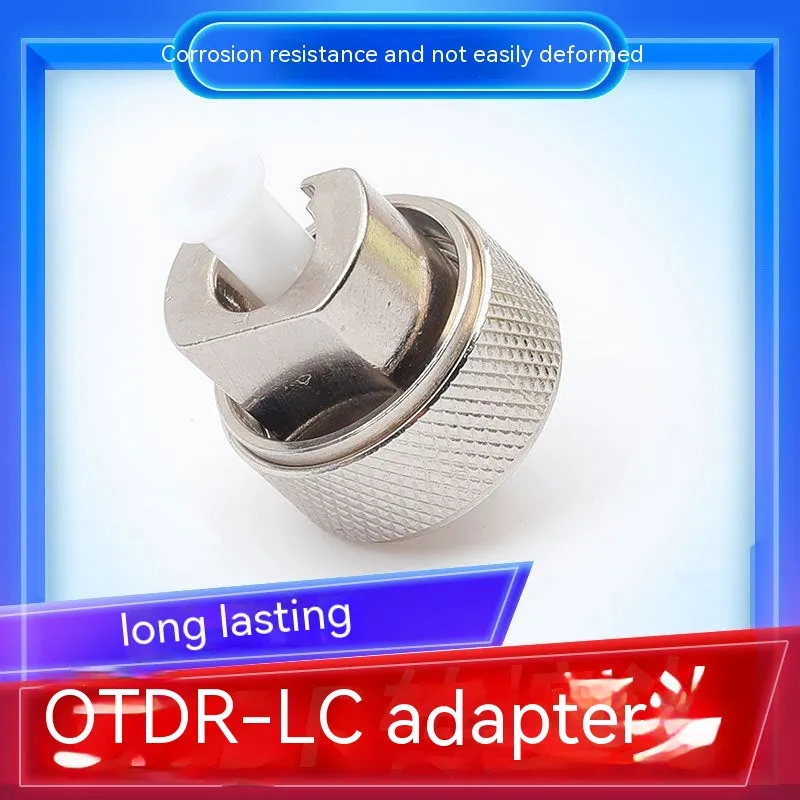

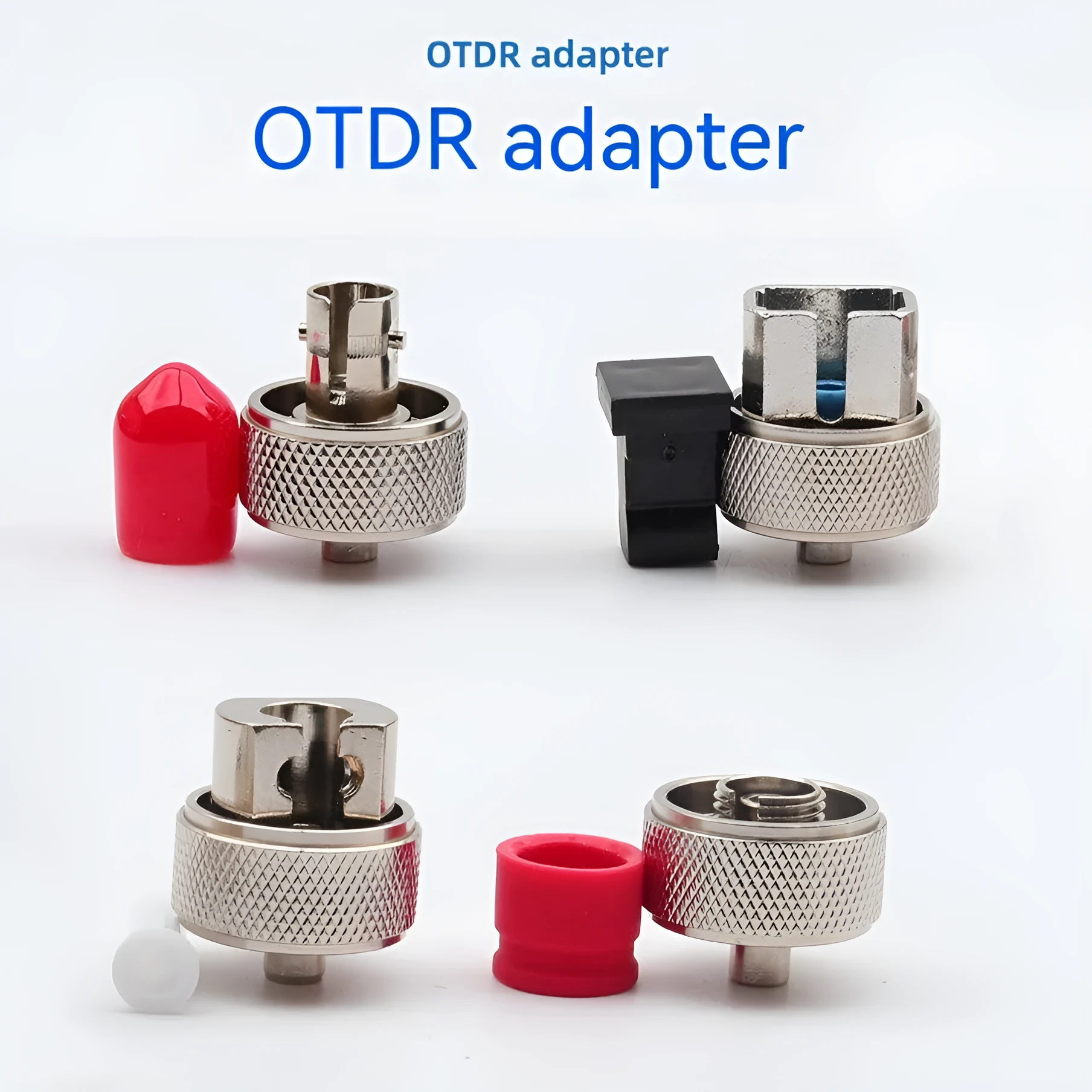

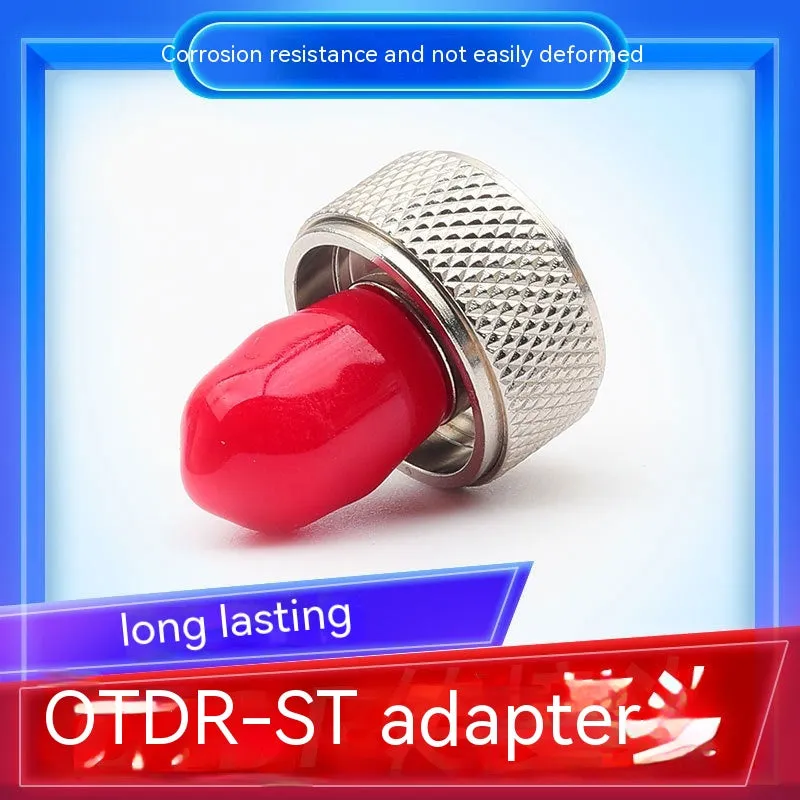

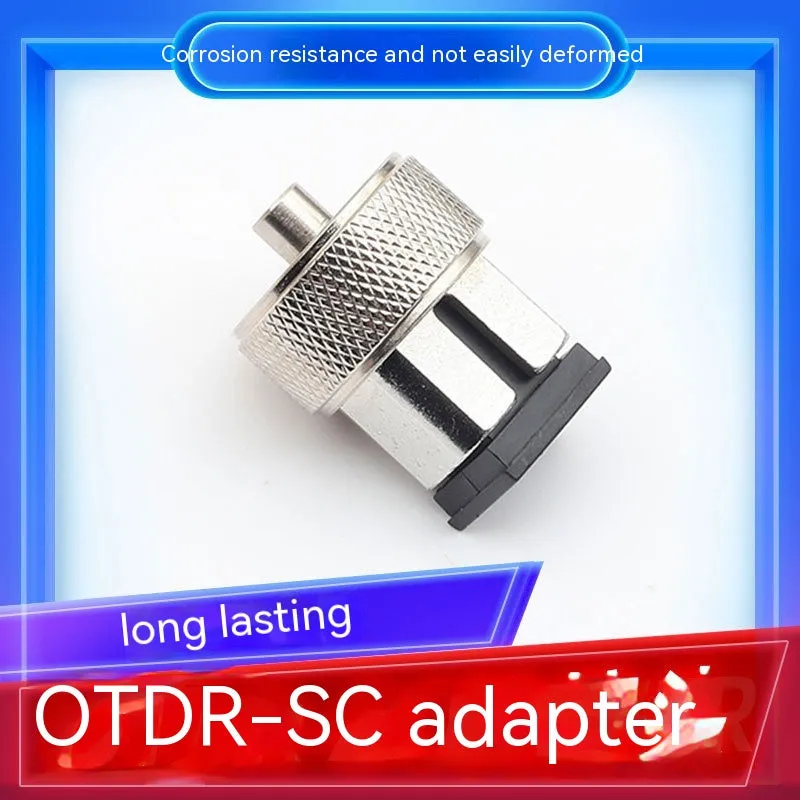

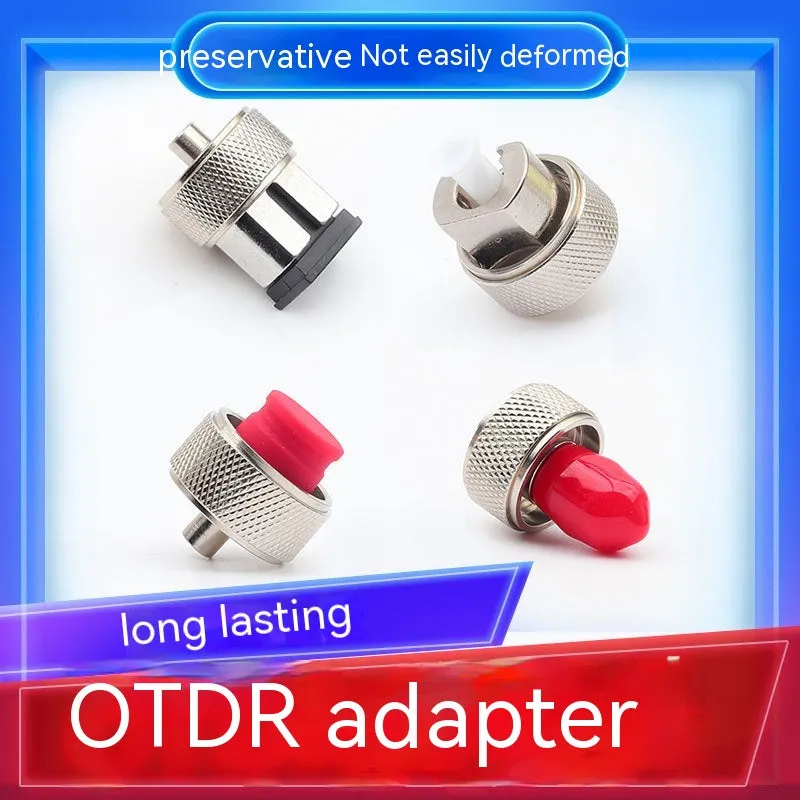

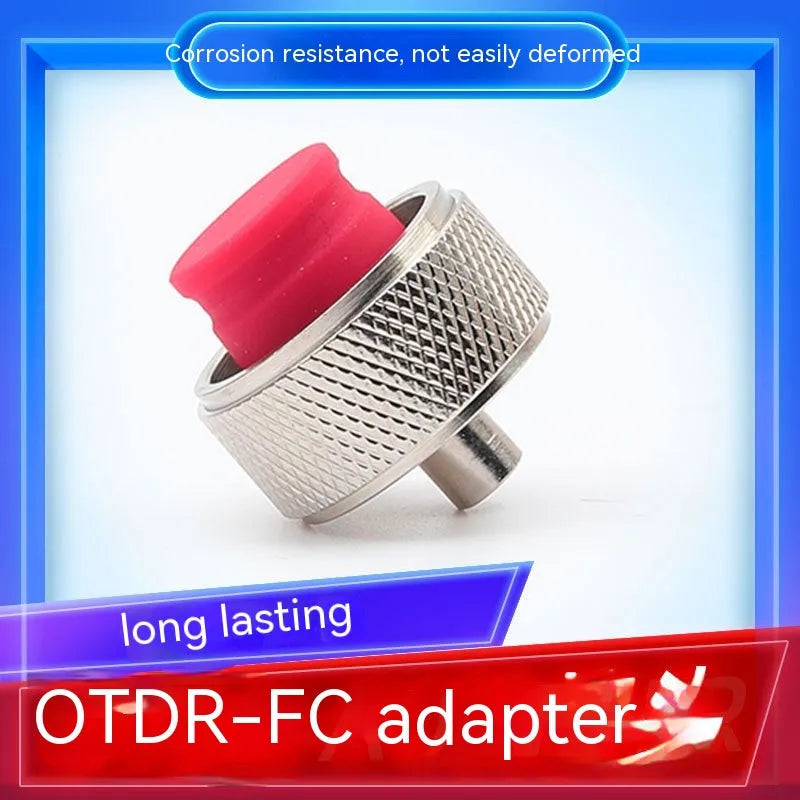

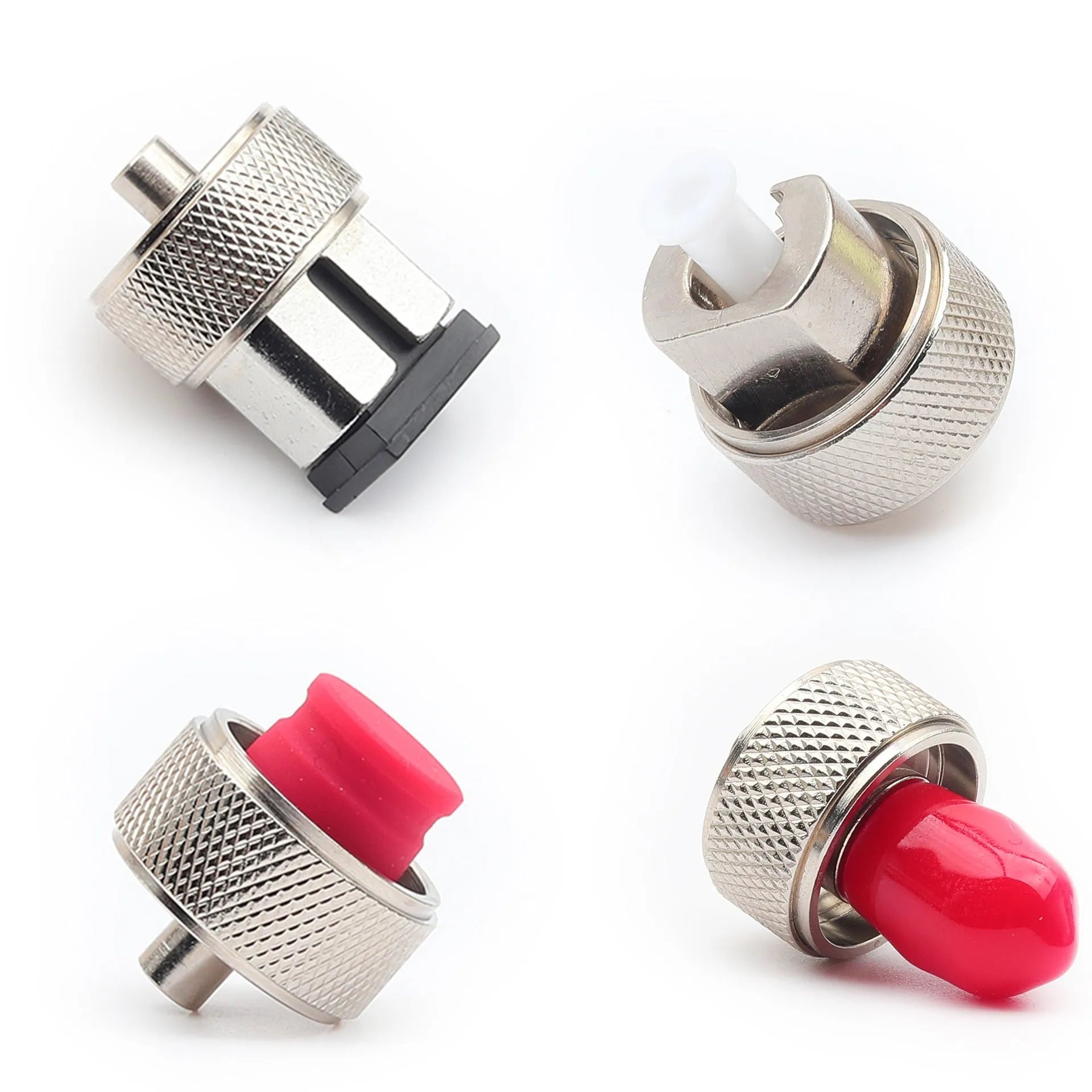

This connector interface set is designed to provide the necessary adapters for connecting an optical time domain reflectometer to various fibre optic cable terminations. Without the correct interface adapters, performing accurate OTDR measurements across different network configurations becomes impossible. The set includes four of the most common connector formats used in fibre optic installations: FC round head, SC square head, ST chuck, and LC square toe. Each adapter is built to match the standard physical dimensions of its respective connector type, ensuring a secure and repeatable connection during testing. The compact overall size of 90x60x15mm makes this set easy to carry in a tool case or testing kit.

Features and Construction

Each adapter in this set is constructed to interface with standard OTDR ports on one side and the respective fibre optic connector on the other. The materials used are typical for fibre optic connector hardware.

Material and Build

The adapters are made from plastic and metal components common to fibre optic connectors. The body provides a secure fit, while the ferrule and alignment sleeve ensure the fibre cores are aligned. No specific certification or material grade is stated beyond what is standard for these connector types.

Size and Practical Fit

The entire set measures 90mm in height, 60mm in width, and 15mm in depth. These dimensions allow the adapters to fit into standard OTDR connection ports without additional hardware. The adapters are not designed for high-density patch panels but for direct connection to the OTDR test port.

Uses and Placement

This interface set is intended for field technicians and network engineers who need to test different types of fibre optic cables. The set covers the most widely used connector formats.

Event or Professional Use

For professional fibre optic testing, having the correct adapter is critical. This set allows the technician to connect to SC, FC, ST, and LC terminations without needing separate adapters for each. It is suitable for use in data centres, telecommunications rooms, and outside plant installations.

Everyday Home Use

While primarily designed for professional use, this set can also be used by advanced home network users who need to test fibre optic connections. The compact size means it can be stored in a desk drawer or toolbox without taking up much space.

Benefits and Buying Value

This set provides the adapters needed to perform comprehensive OTDR testing across multiple connector types. It eliminates the need to purchase each adapter separately.

Reuse and Low Maintenance

The adapters are durable enough for repeated field use. With proper care, such as keeping dust caps on when not in use, they will maintain reliable performance over time. No special maintenance is required beyond keeping the optical surfaces clean.

Why Choose This Product

This product offers a complete set of four common OTDR connector interfaces in a single package. It is a straightforward solution for technicians who need to test SC, FC, ST, and LC fibre optic cables. The compact dimensions make it easy to transport.
