Lithium Battery Charging and Protection Board: 5V Input with 4.2V Cut-Off and 3A Overcurrent Protection

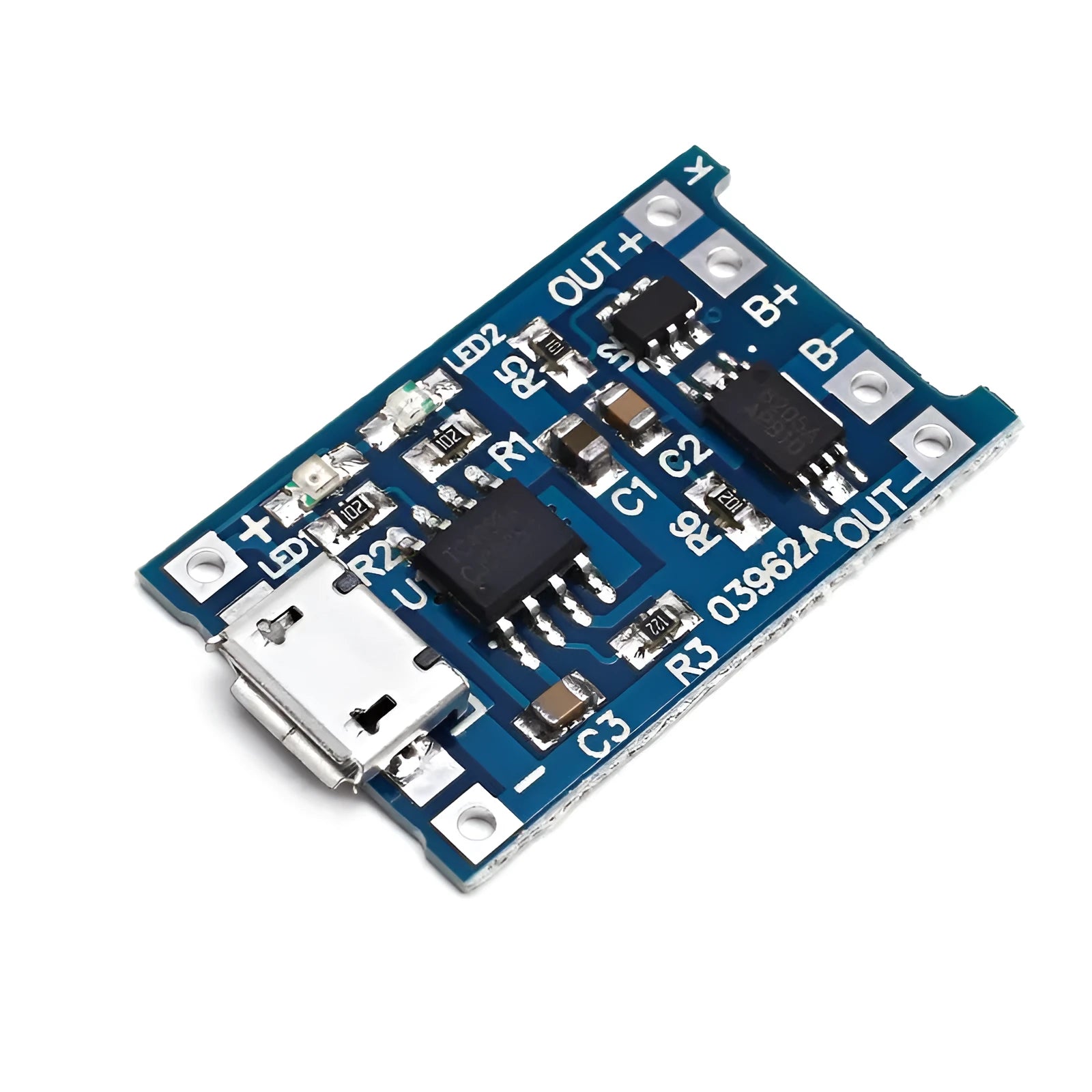

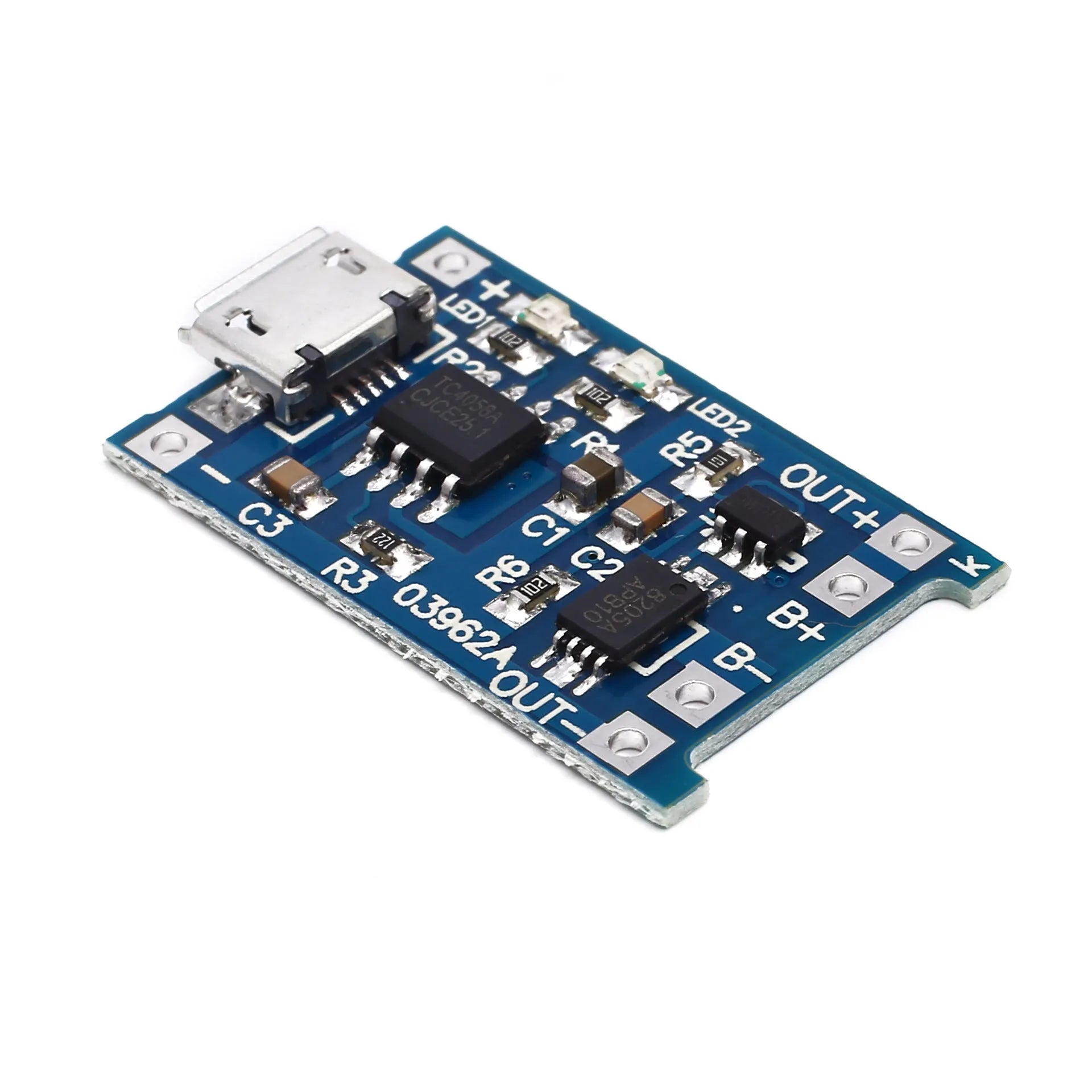

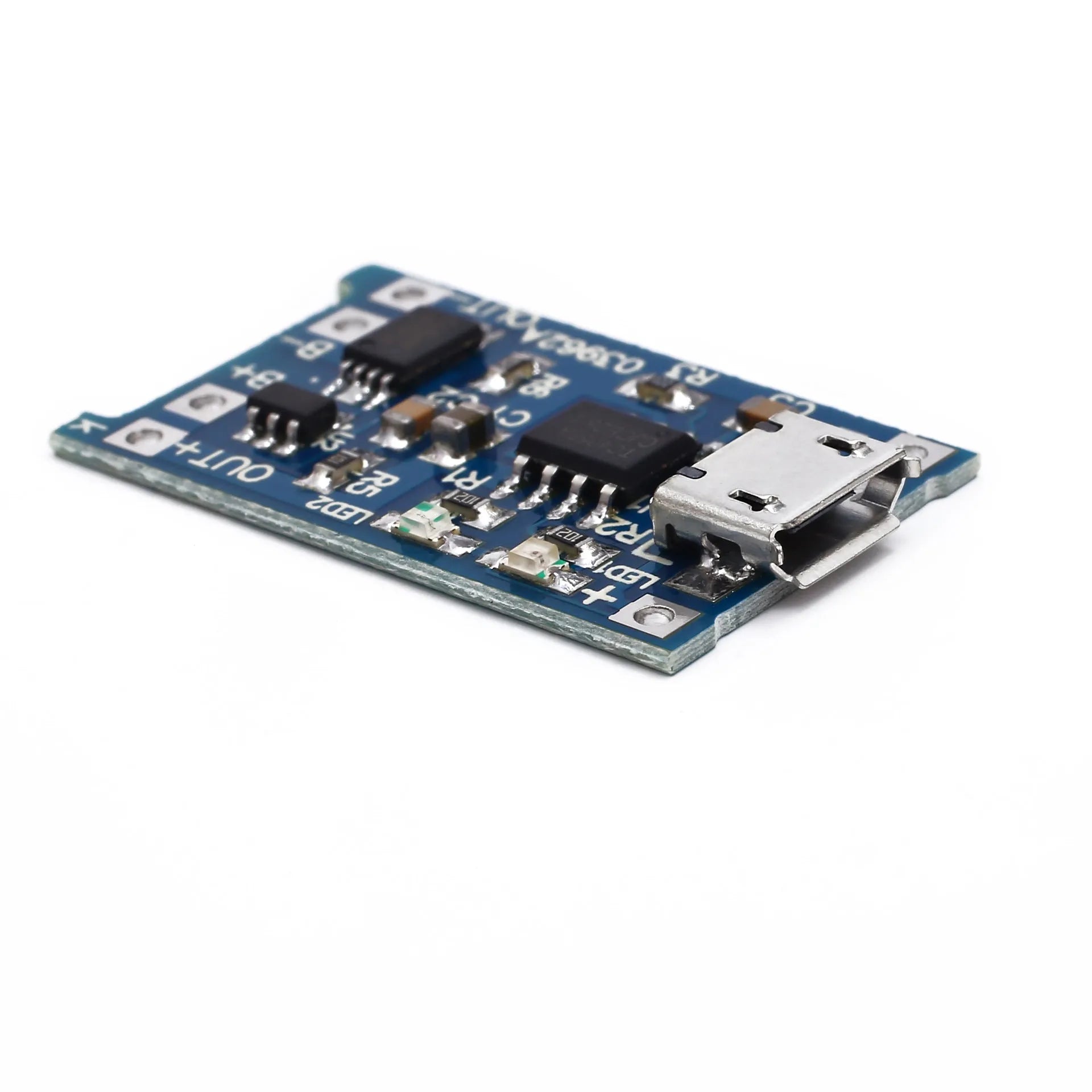

This integrated circuit board offers a complete, ready-to-use solution for safely charging and protecting single-cell lithium-based batteries, such as 18650 cells or lithium-polymer packs. Designed for hobbyists, makers, and electronics enthusiasts, it simplifies the process of incorporating battery power into projects by combining the necessary charging logic and safety features onto one compact module. By accepting a common 5V input from a USB port or power adapter, it provides a managed charge cycle up to 4.2V while actively monitoring the battery's state to prevent damage from over-discharge or excessive current draw. Its small footprint makes it an ideal choice for portable gadgets, backup power units, or any application where reliable and safe lithium battery management is a priority.

Features and Construction

This board integrates several key electronic protection functions alongside its primary charging role, all within its stated dimensions. The design centres on a printed circuit board that hosts the necessary microchips, resistors, capacitors, and connection points to form a complete battery management system.

Material and Build

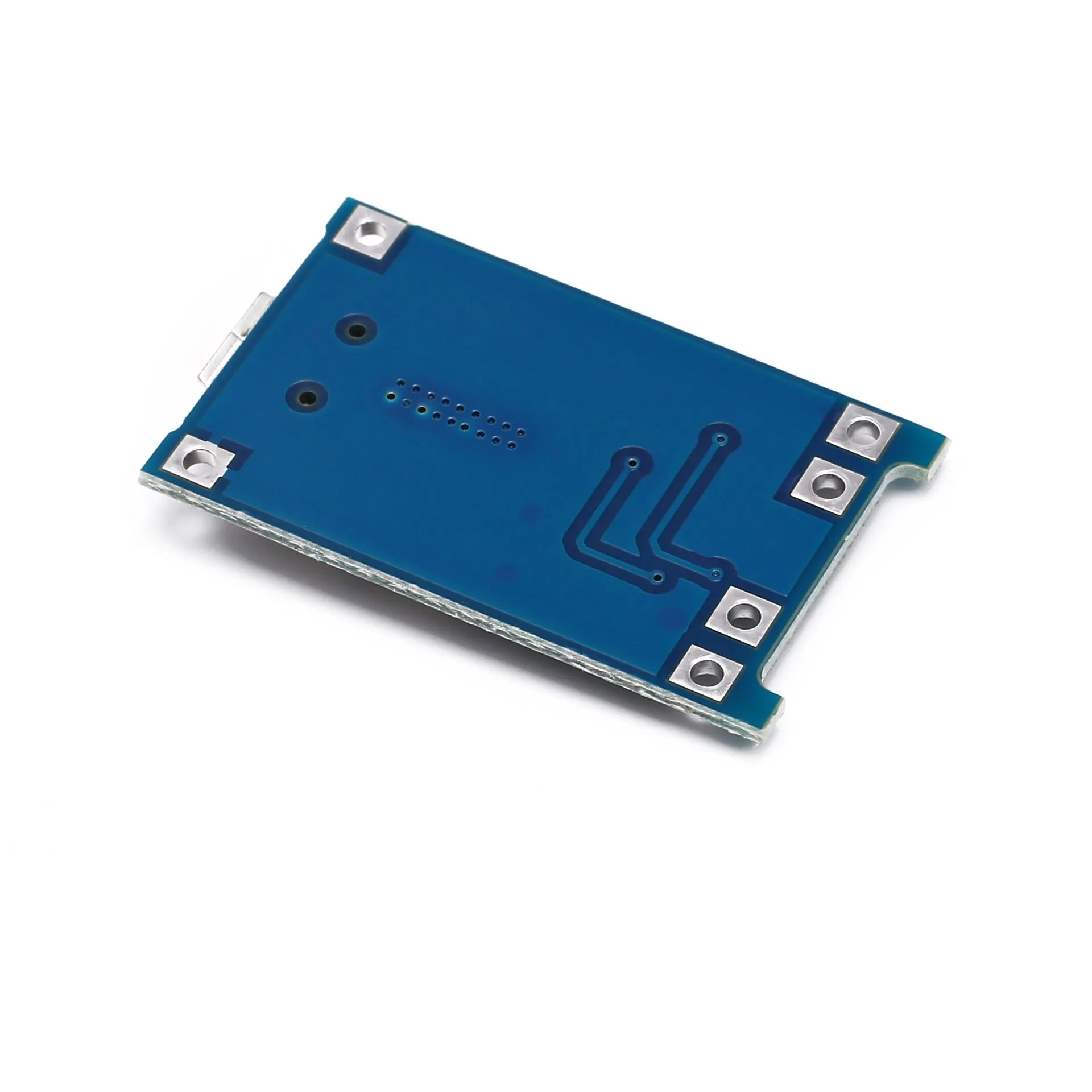

The core component is a standard fibreglass PCB, which provides a durable and non-conductive base for the surface-mounted electronic components. The board's construction follows typical PCB assembly practices, with clearly labelled solder pads for user connections. The blue solder mask colour, as indicated in the source, offers a visual contrast for tracing circuits. The build is focused on functionality, providing a robust platform for the integrated charging IC and protection circuitry without extraneous features.

Size and Practical Fit

With precise dimensions of 2.6 cm in length and 1.7 cm in width, the board is notably compact. This small size is a primary practical advantage, allowing it to be fitted into tight spaces within electronic enclosures, such as those for custom portable speakers, handheld gaming devices, or compact sensor units. The modest footprint means it adds minimal bulk while delivering essential battery management, making it suitable for projects where internal space is at a premium.

Uses and Placement

The board's specified electrical parameters dictate its ideal applications and how it should be integrated into a system. It is designed for scenarios involving a single lithium cell that requires periodic recharging from a common power source.

Event or Professional Use

For professional prototyping, educational electronics kits, or small-batch production, this module saves significant development time. Engineers and product developers can use it as a verified, off-the-shelf component to add battery functionality to a proof-of-concept or a low-volume commercial product without designing a custom protection circuit. Its defined parameters, like the 1000mA maximum charge current, provide clear guidelines for system design and thermal management.

Everyday Home Use

For DIY enthusiasts and makers, this board is perfect for home projects like creating a custom power bank, reviving old electronic toys with new battery packs, or building solar-powered garden lights with lithium battery storage. The integrated protections offer peace of mind, reducing the risk of battery failure, which is a common concern when working with lithium cells. Its 5V input means it can be easily powered from old mobile phone chargers or computer USB ports, adding to its convenience for home workshops.

Benefits and Buying Value

The value of this integrated board lies in its combination of multiple discrete functions into one reliable, pre-assembled unit, backed by its published technical specifications.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, it requires virtually no maintenance once installed. The board itself is a durable component that can be reused across multiple projects or prototypes. Its protection features actively contribute to the longevity of the more expensive lithium battery it manages, by preventing the deep discharges and overcurrent events that typically degrade battery life, offering long-term value.

Why Choose This Product

Choosing this specific board is supported by its concrete specifications: the 4.2V ±1% charging cut-off ensures a full charge without over-voltage, the 2.5V over-discharge protection preserves battery health, and the 3A overcurrent threshold provides a safety net for the connected circuitry. Compared to sourcing individual ICs and designing a PCB from scratch, this integrated board delivers a tested, ready-made solution that reduces complexity, saves time, and mitigates the risk of design errors in critical battery safety functions.
