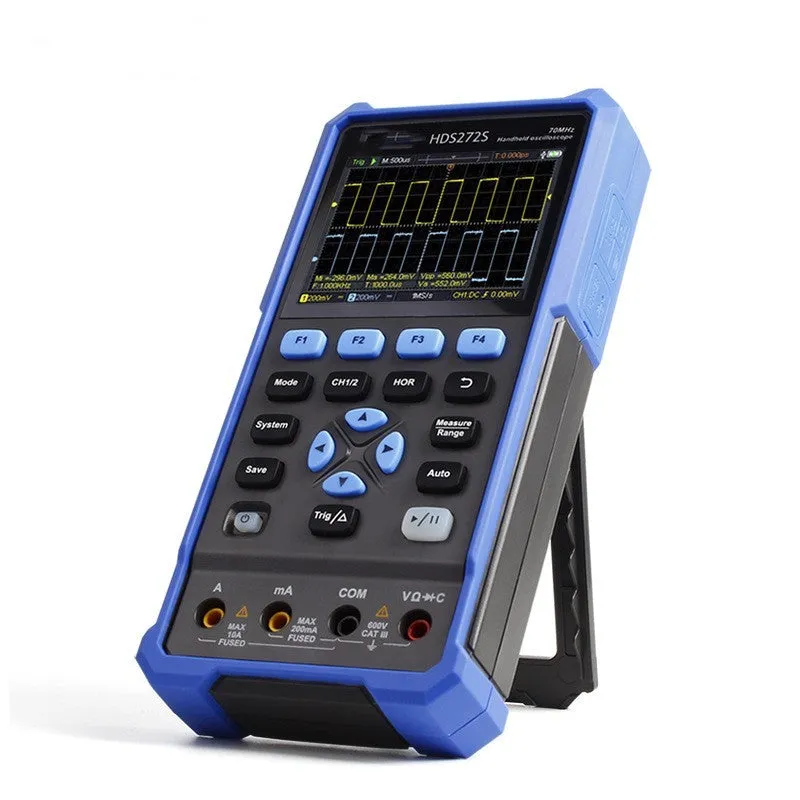

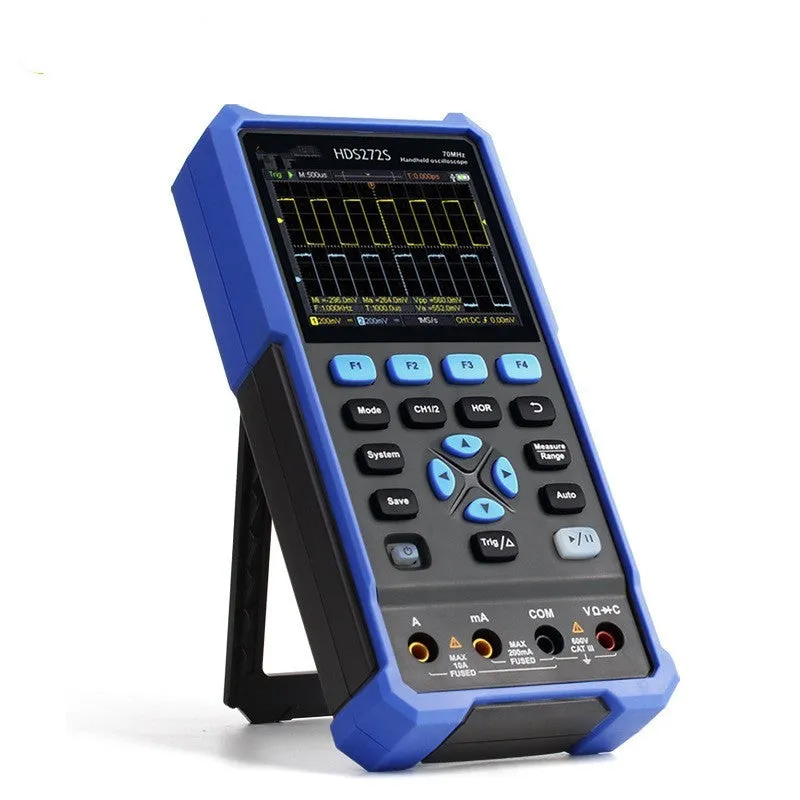

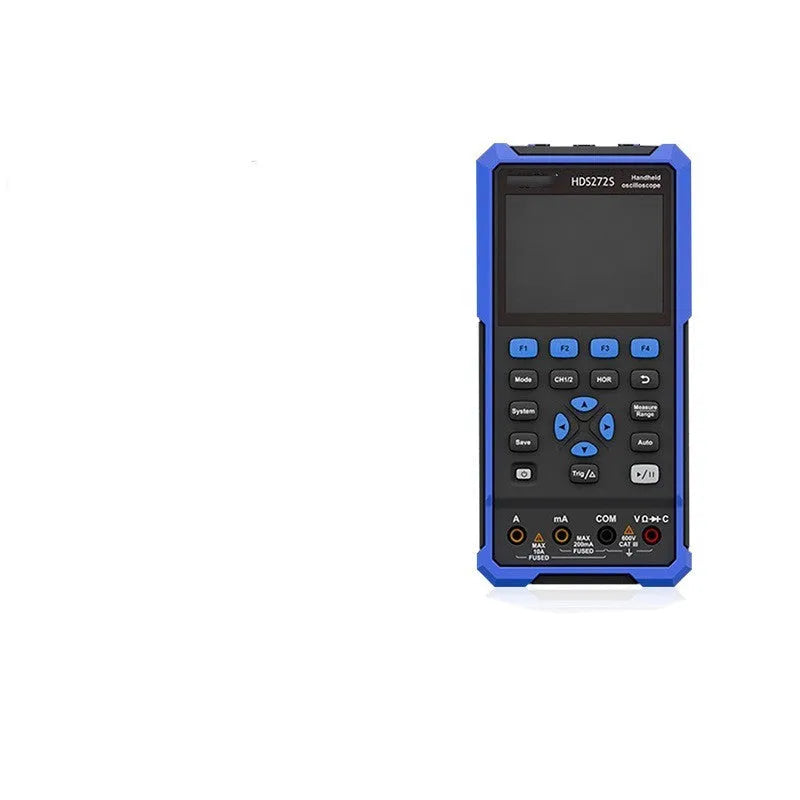

Owon HDS272 Series Handheld Digital Oscilloscope with 40-70 MHz Bandwidth for Automotive and Electronic Repair

This portable digital oscilloscope represents a practical tool for professionals requiring waveform measurement capabilities in field conditions. Designed around the Owon HDS272 platform, it provides essential oscilloscope functions in a genuinely handheld format measuring 198mm by 96mm by 38mm. The device addresses situations where technicians need to perform electronic diagnostics away from workshop benches, combining core measurement capabilities with transportability. With bandwidth spanning 40 to 70 MHz and sampling at 250 million samples per second, it captures electronic signals for analysis across automotive systems, consumer electronics repair, and industrial maintenance applications.

Features and Construction

The handheld oscilloscope incorporates measurement specifications suitable for various troubleshooting scenarios. Its construction balances functionality with portability, providing essential test equipment capabilities without requiring AC power or extensive setup time.

Material and Build

The device utilises typical materials for portable electronic test equipment, including impact-resistant plastics for the main housing and metal components for connectors and probes. The included accessories feature practical construction: the oscilloscope probe pen provides insulated testing points, while the BNC to crocodile clip adapter enables connection to various test points. The portable bag offers protection during transport between job sites, complementing the handheld design philosophy.

Size and Practical Fit

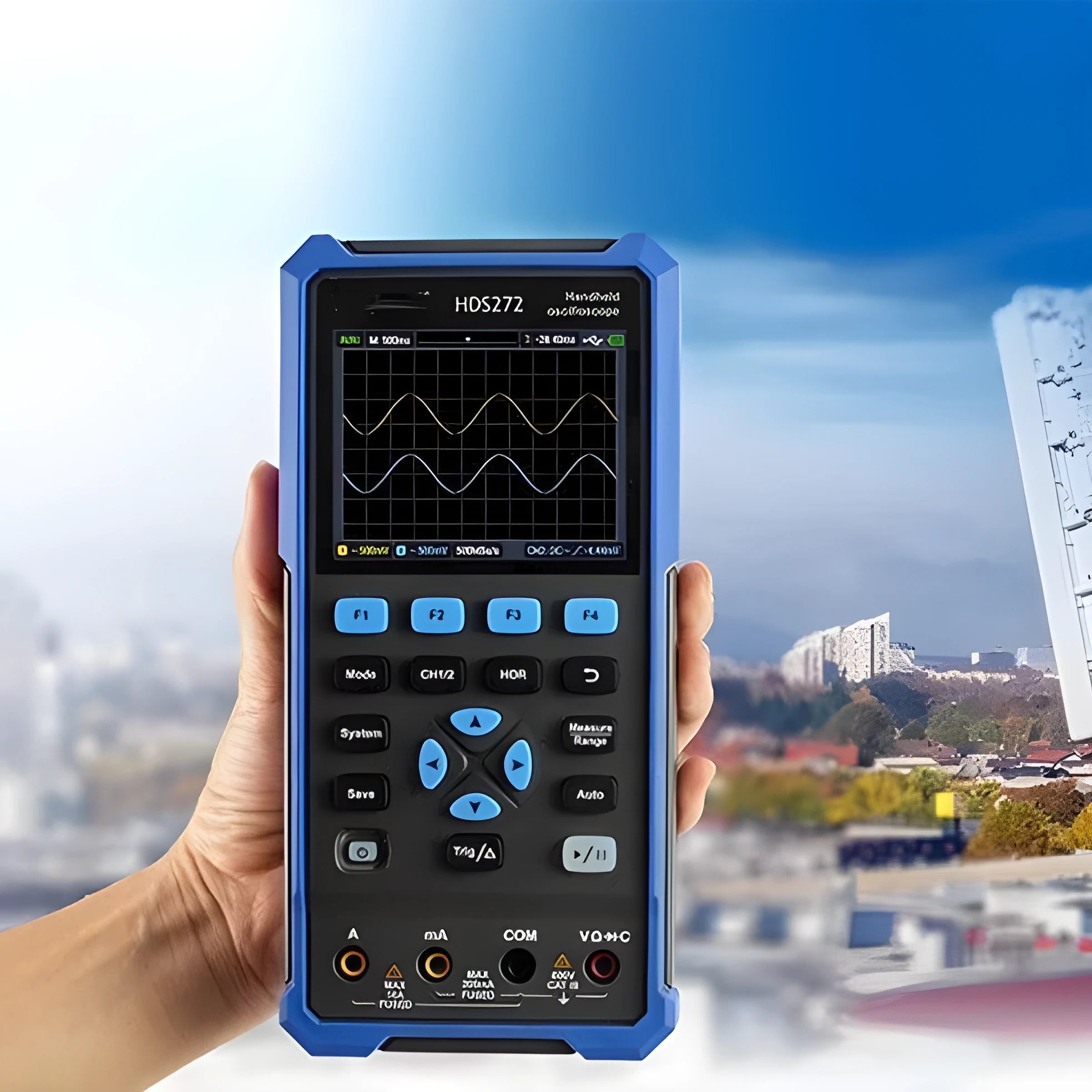

With dimensions of 198mm length, 96mm height, and 38mm depth, this oscilloscope genuinely fits in one hand or a tool bag. The compact proportions allow technicians to carry it alongside other diagnostic tools, making it suitable for mobile repair services or situations requiring measurements in confined spaces. The size-to-function ratio provides oscilloscope capabilities without the bulk of traditional bench models, though it maintains necessary screen visibility and control accessibility for field diagnostics.

Uses and Placement

The oscilloscope serves specific measurement applications where portability provides distinct advantages over stationary equipment. Its specifications target common electronic repair frequencies while maintaining usability outside laboratory environments.

Event or Professional Use

Automotive technicians will find the 40-70 MHz bandwidth appropriate for diagnosing various vehicle electronic systems, including sensor signals, communication buses, and ignition waveforms. The 250MSa/s sampling rate captures sufficient detail for identifying anomalies in automotive electronics, while the waveform capture rate of 10000 waveforms per second helps detect intermittent faults. Field service engineers can use it for industrial equipment troubleshooting where signals fall within its measurement range.

Everyday Home Use

Electronics enthusiasts and repair technicians working on consumer devices may employ this oscilloscope for troubleshooting audio equipment, power supplies, digital circuits, and other electronic projects. The handheld format suits workshop benches with limited space or situations requiring measurements at different locations within a workspace. Hobbyists appreciate the complete accessory set that provides immediate testing capabilities without additional purchases.

Benefits and Buying Value

The value proposition centres on providing specific measurement capabilities in a portable format with complete accessory inclusion, reducing setup time and increasing application flexibility.

Reuse and Low Maintenance

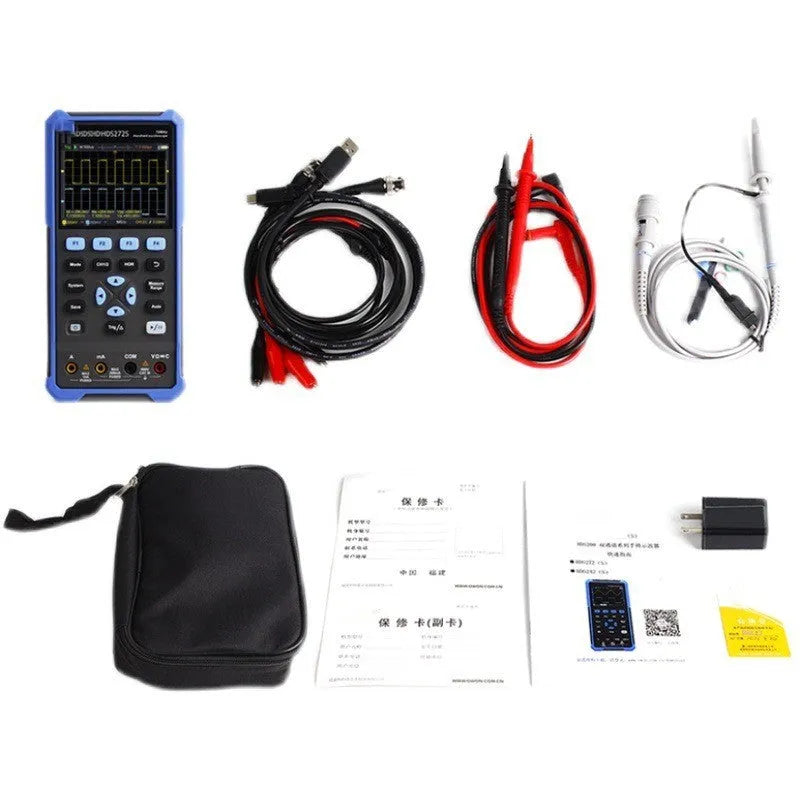

The included accessories support repeated use across multiple testing scenarios: the oscilloscope probe pen connects to standard BNC inputs, the multimeter pen provides basic voltage measurement, and the correction pen maintains probe accuracy. The portable bag protects the unit during transport between locations, while standard USB connectivity allows for potential data transfer. These elements support ongoing utility without requiring frequent accessory replacement.

Why Choose This Product

This handheld oscilloscope offers a practical alternative when bench oscilloscopes cannot reach the measurement location or when technicians require mobile diagnostic capabilities. The specified 40-70 MHz bandwidth covers many automotive and general electronic repair frequencies, while the 250MSa/s sampling provides adequate resolution for common waveforms. The complete accessory package means technicians can begin measurements immediately across various connection types without sourcing additional adapters or probes.
