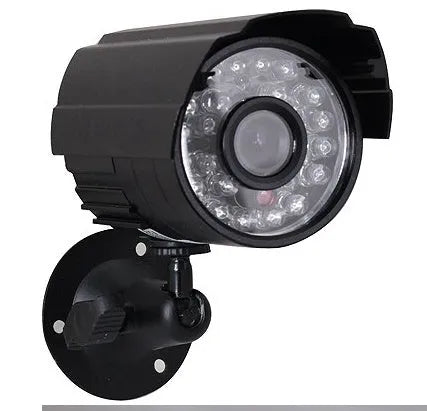

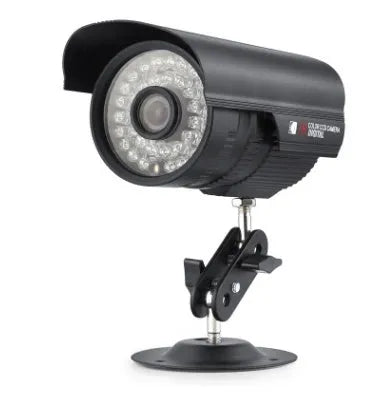

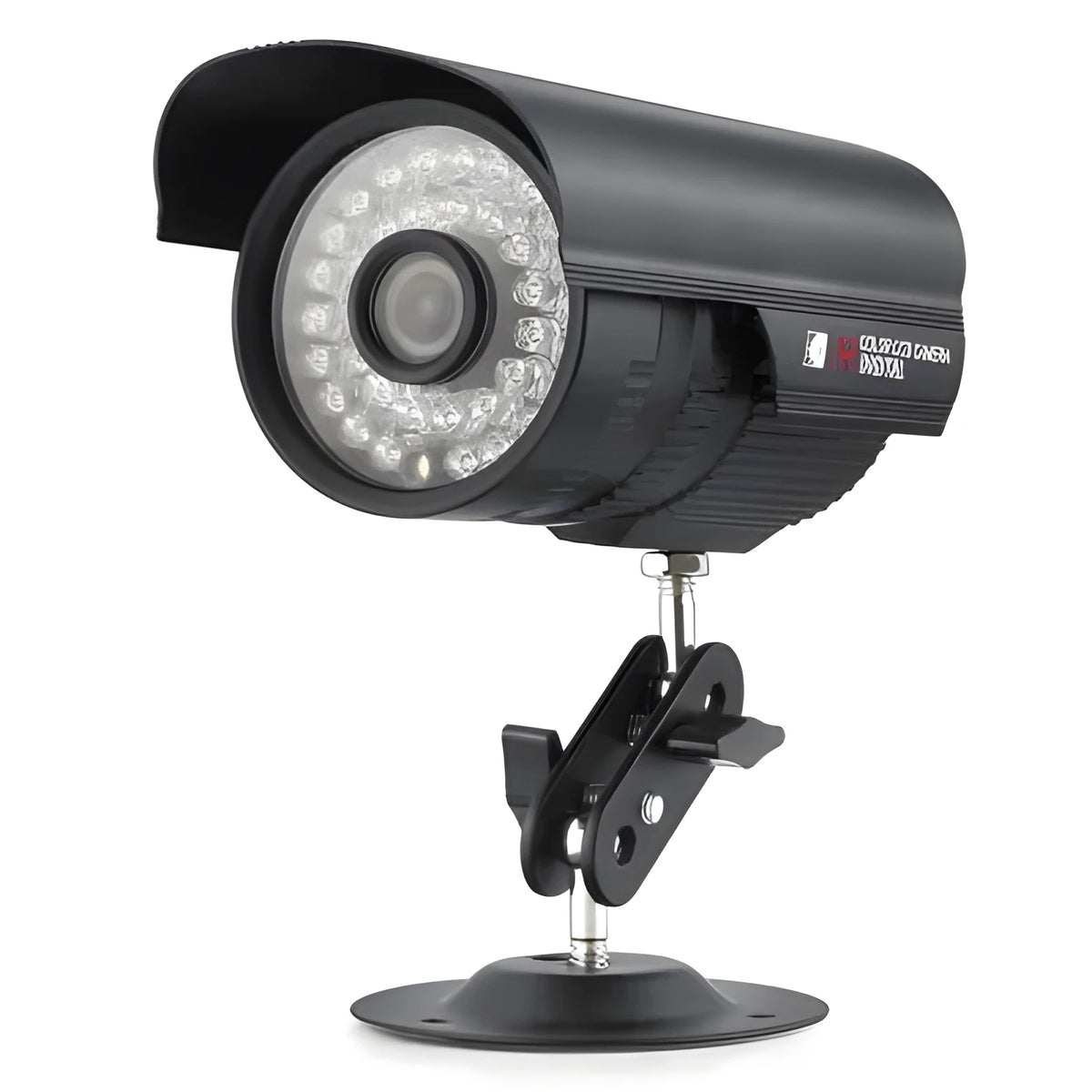

CMOS Infrared Night Vision Camera with 36 LEDs for 24-Hour Surveillance

This CMOS-based infrared night vision camera delivers consistent security monitoring in both daylight and complete darkness. With 1000 TV lines resolution and a minimum illumination of 0 Lux at F1.2, it captures usable video without additional lighting. The camera is engineered for reliable operation in continuous surveillance setups, making it suitable for homes, shops, offices, and warehouses. Its 36 infrared LEDs provide effective night vision coverage, while the 48dB signal-to-noise ratio ensures clean image transmission.

Key Specifications and Build

The camera combines a CMOS sensor with infrared LED array to deliver practical surveillance imaging around the clock. Its construction is focused on functional performance and low power consumption.

CMOS Sensor and Resolution

The CMOS image sensor delivers 1000 TV lines resolution, providing clear enough detail for identifying people and objects in monitored areas. This resolution level is well suited to standard security applications where reliable visual evidence is needed.

Infrared Night Vision

With 36 Ф5 infrared LEDs, the camera sees in total darkness (0 Lux). The LEDs activate automatically in low-light conditions, illuminating the field of view without visible light that could alert subjects or disturb neighbours. The night vision range is effective for typical indoor and outdoor monitored zones.

Power and Signal Performance

Operating on DC 12V at 750mA, the camera keeps energy consumption modest. The greater than 48dB signal-to-noise ratio helps maintain clear video signal transmission, while the 1/50 to 1/100,000 second shutter speed range allows capturing both slow and fast-moving subjects without blurring.

Installation and Usage

Designed for straightforward integration into existing security systems, this camera connects to standard DC 12V power and composite video inputs. Its all-in-one design simplifies mounting and positioning.

Mounting and Positioning

The camera should be mounted securely in a location where its infrared LEDs can cover the target area effectively. For best night vision performance, avoid placing it behind glass or near strong light sources that could reduce IR effectiveness. Aim the camera to cover entry points, corridors, or high-traffic zones.

Power Supply Considerations

Use a stable DC 12V power source rated for at least 750mA to ensure consistent operation. A regulated power supply is recommended to maintain image quality and LED brightness. The low power draw makes it suitable for extended continuous use.

Integration with Recording Systems

Connect the camera's video output to a compatible DVR, NVR, or monitor with composite input. The 1000 TV lines resolution is standard for analogue CCTV systems, ensuring easy integration without requiring specialised equipment.

Benefits and Value

This camera provides core security functionality at modest power consumption. Its practical features support both deterrence and evidence capture in typical surveillance scenarios.

24-Hour Operation

The combination of daylight sensitivity and infrared night vision means the camera remains operational around the clock without needing separate lighting. This continuous operation simplifies security setup and reduces hardware costs.

Low Maintenance Design

With no moving parts and a power draw of only 750mA, the camera requires minimal ongoing attention. The solid-state CMOS sensor and LED array are built for long service life in normal ambient conditions.

Cost-Effective Security Solution

This camera offers reliable imaging performance at a competitive specification level. Its straightforward design and standard DC 12V power make it an economical choice for expanding or upgrading a security system.
