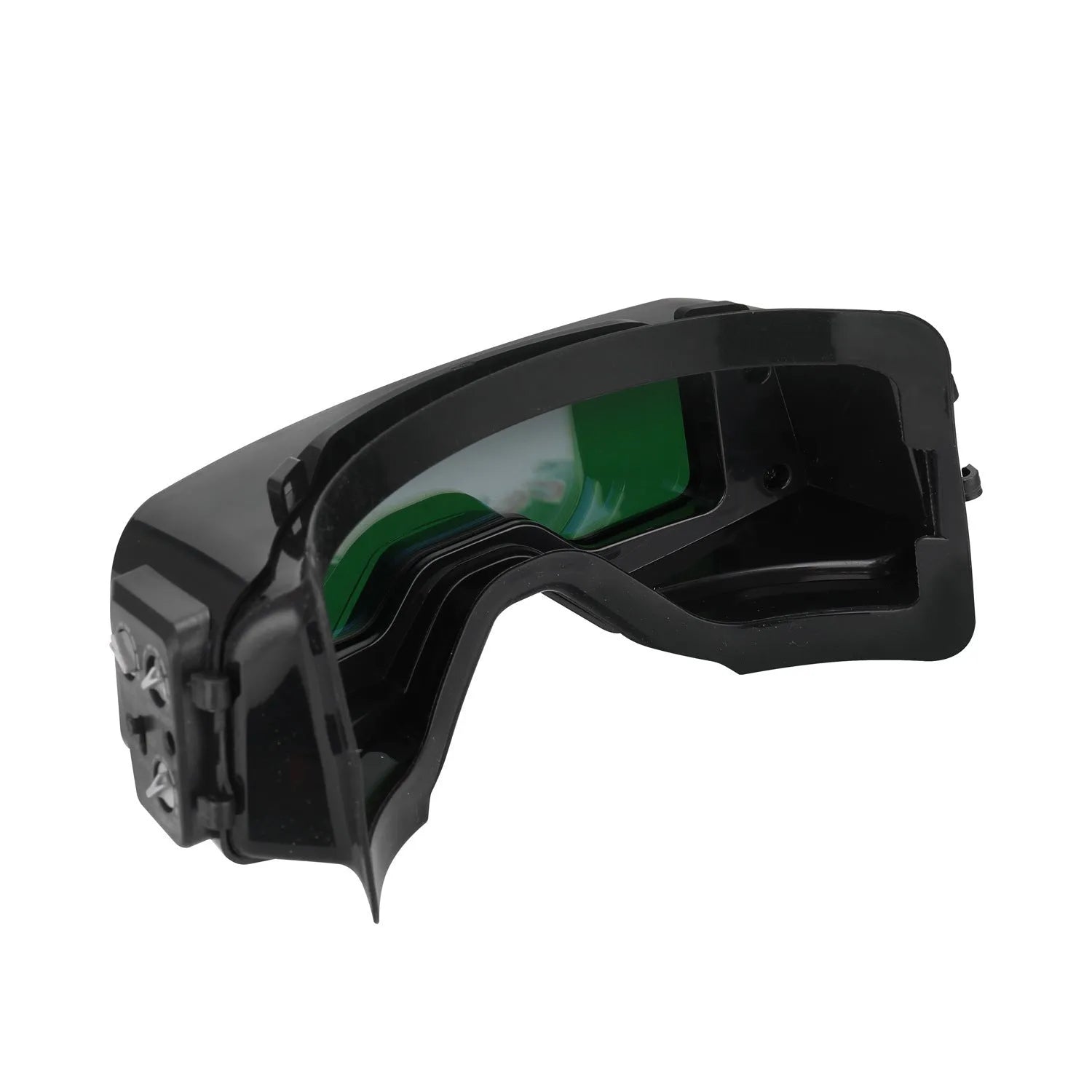

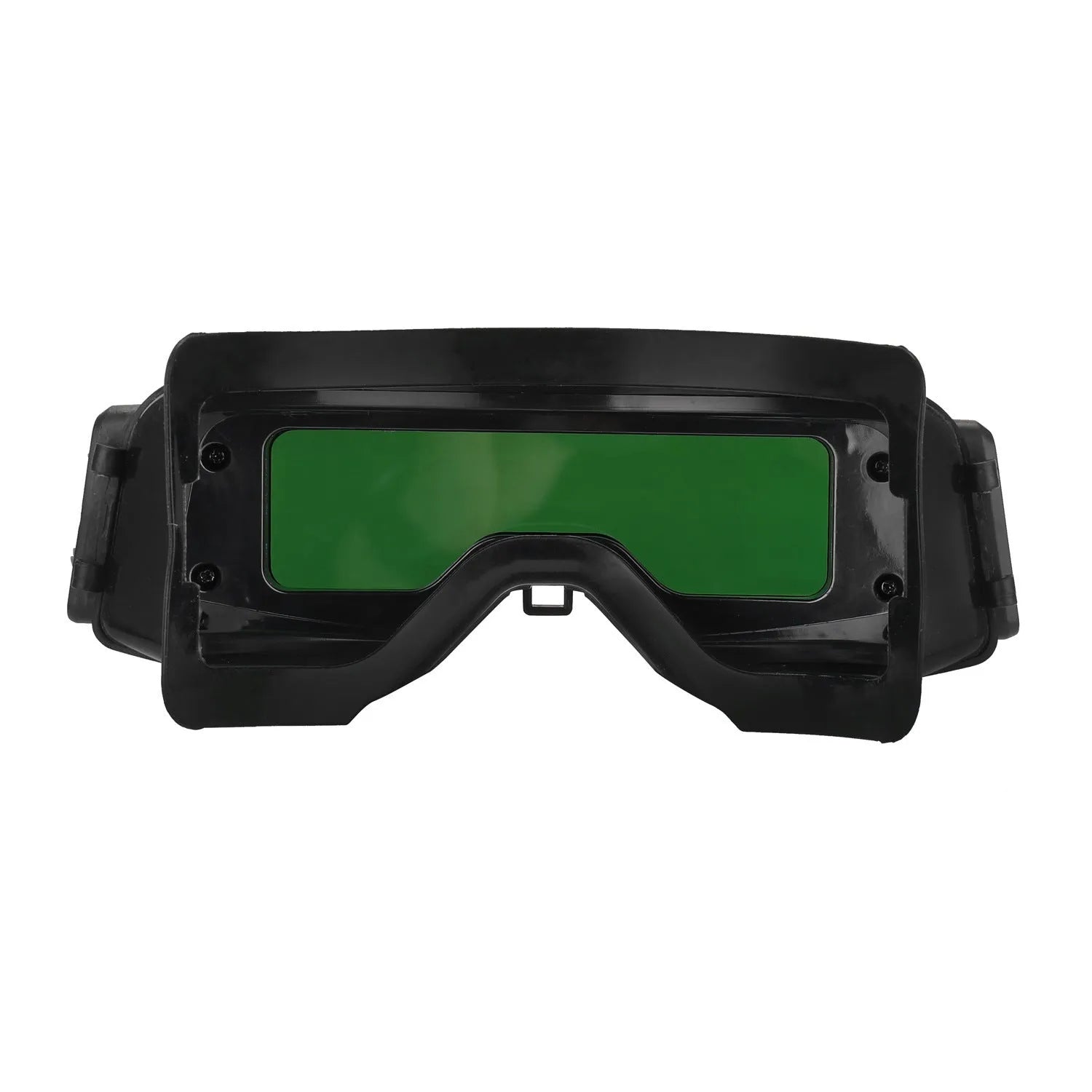

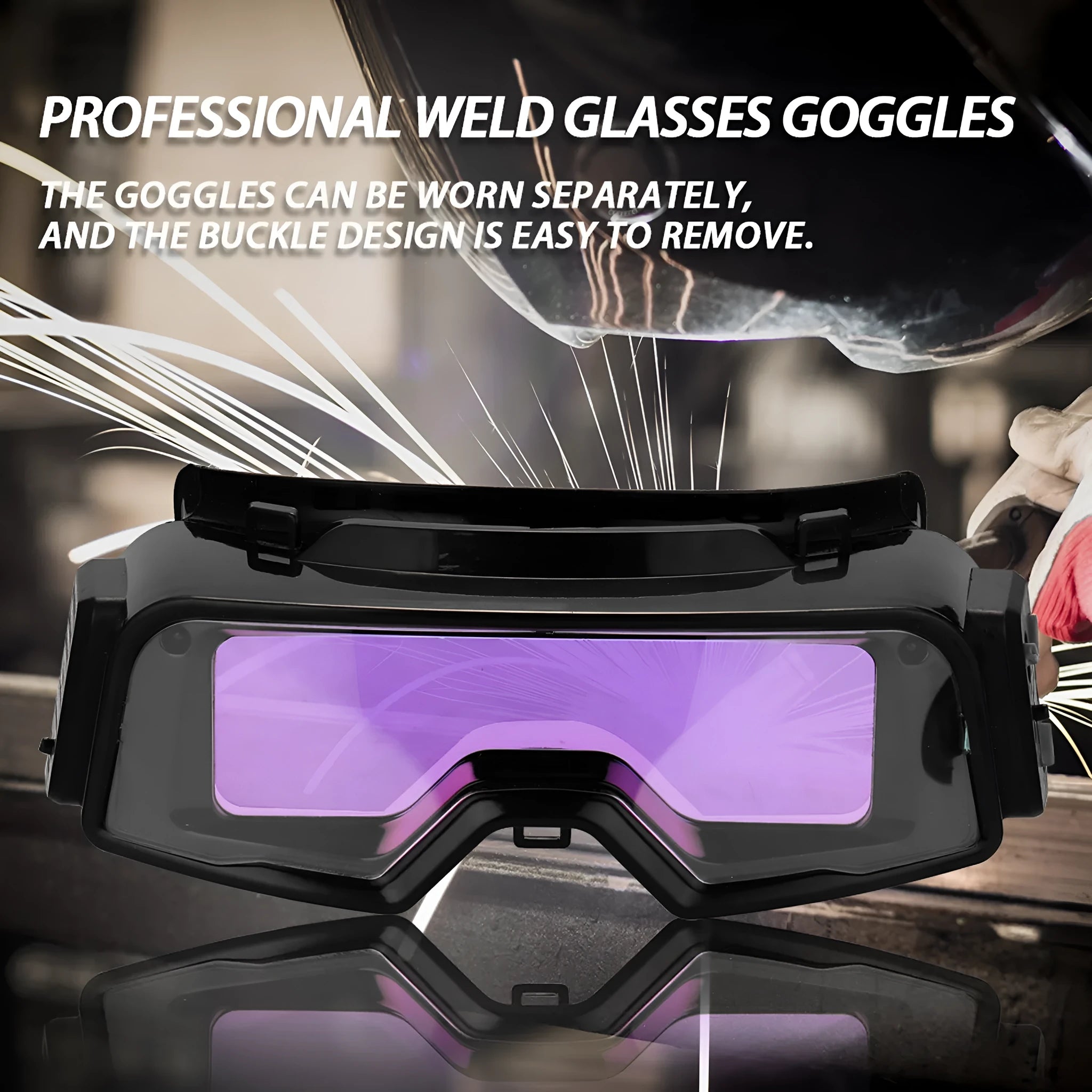

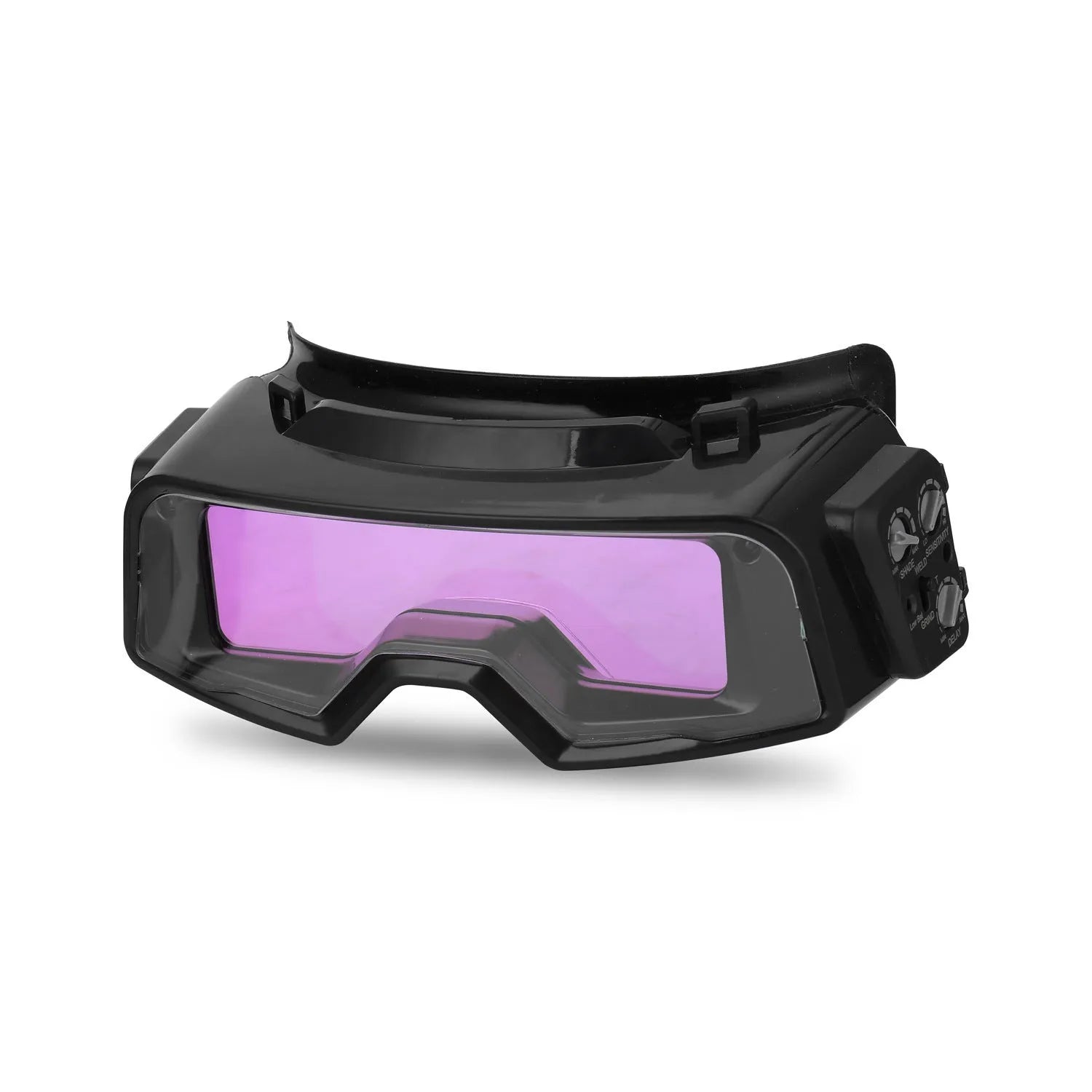

Automatic Darkening Welding Mask with Light State Changing Lens for Arc Welding Protection

This automatic welding mask is engineered to offer immediate, hands-free eye protection for arc welding applications. Its core function is an automatic darkening lens that reacts in 0.03 seconds when its dual sensors detect the bright light of an arc, shifting from a light state of DIN4 to a dark state ranging between DIN5 and DIN13. This rapid response shields the welder's eyes from harmful ultraviolet and infrared radiation without the need to manually lift or lower a visor. The mask is designed for practicality, featuring stepless adjustments for sensitivity and a variable post-arc delay, all powered by a single, user-replaceable battery. With an operating range from -5°C to +55°C and a UV protection rating of DIN16, it is built to perform in various workshop conditions.

Features and Construction

The mask integrates several technical features aimed at reliable performance and user control during welding tasks. Its construction prioritises functional protection with adjustable elements to suit different working styles and environments.

Material and Build

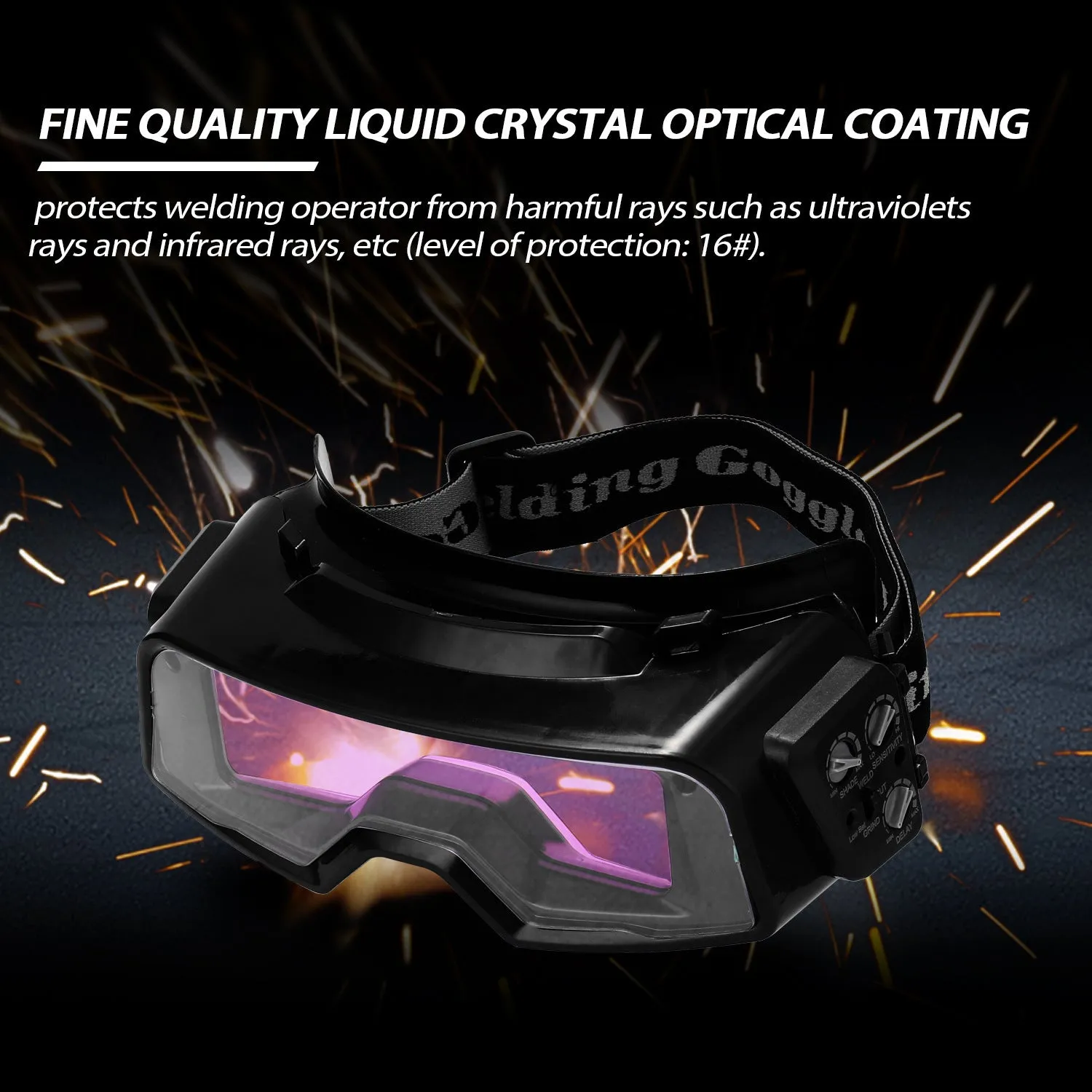

The primary structural material of the mask is a black polypropylene (PP) shell, forming the protective headwear. This material choice contributes to the overall weight of 195 grams, aiming for a balance between durability and wearer comfort during extended use. The lens assembly is housed within this shell, featuring a DIN4-rated lampshade in its light state. The core protective specification is its UV protection grade of DIN16, indicating a high level of shielding against ultraviolet radiation emitted during welding.

Size and Practical Fit

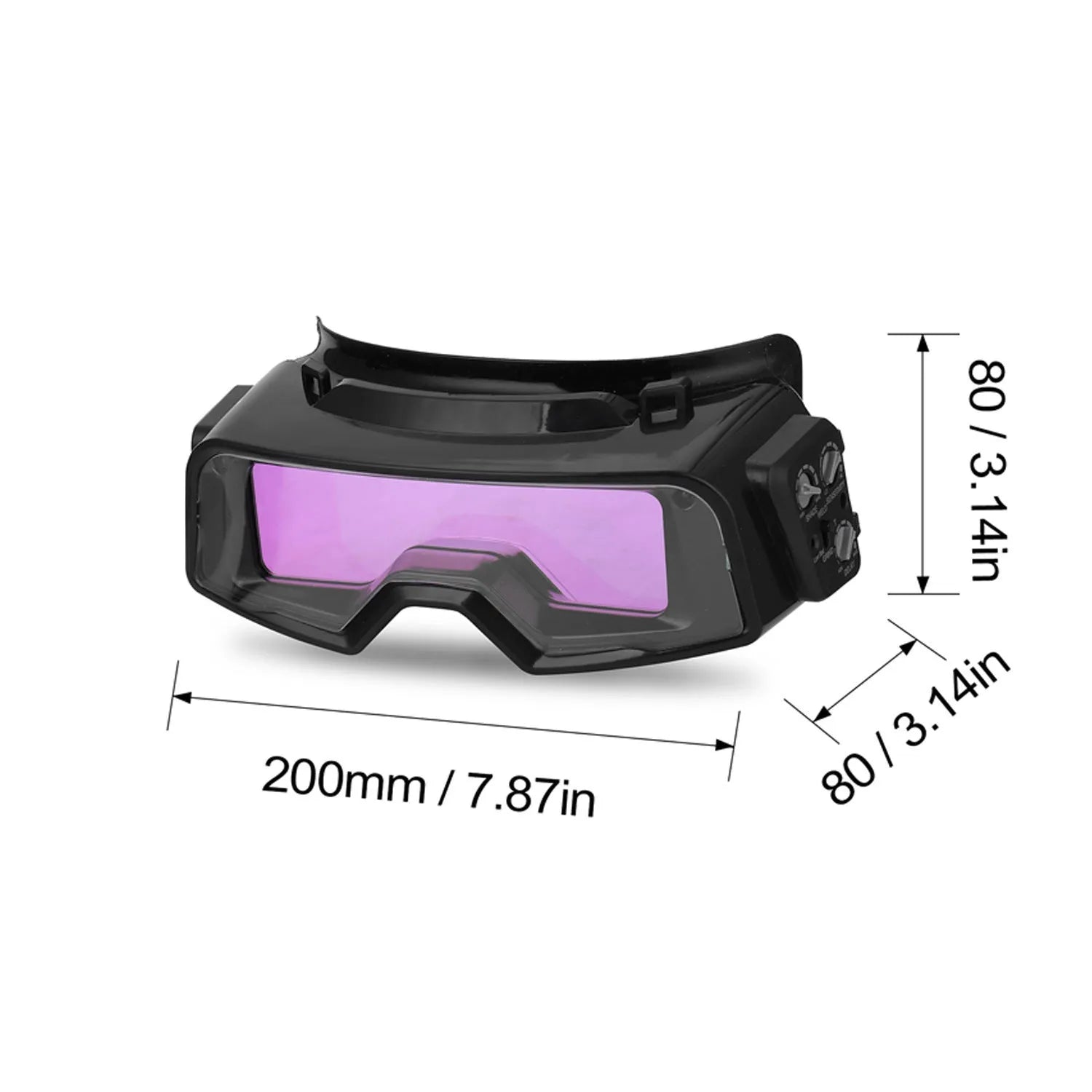

A key practical aspect is the effective viewing area, which measures 122.5 millimetres in width by 35 millimetres in height. This rectangular aperture provides the welder's field of vision while the mask is in use. The product's packaged dimensions are 210mm by 100mm by 90mm, detailing the box size for storage or shipping reference. The mask's weight and viewing area dimensions are fixed specifications that influence its on-head feel and the scope of the visual workspace.

Uses and Placement

This mask is intended for professional and DIY arc welding work where consistent eye protection is necessary. Its automatic function is designed to integrate seamlessly into the welding process, reducing manual intervention and potentially improving workflow.

Event or Professional Use

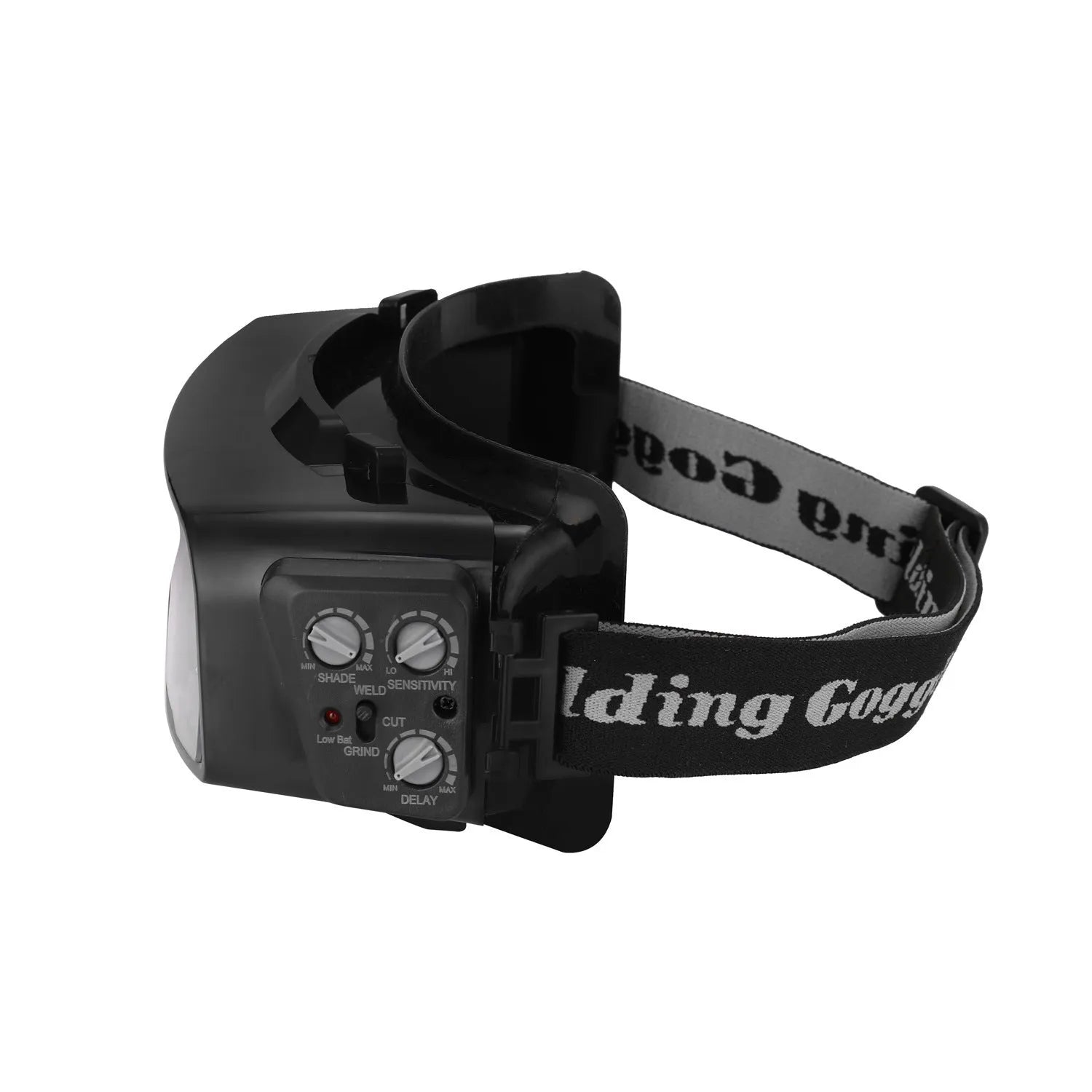

In professional fabrication, manufacturing, or construction settings, the mask's 0.03-second switch time and dual arc sensors aim to provide reliable, instant protection for repetitive welding tasks. The ability to adjust the sensitivity steplessly allows it to be fine-tuned for different welding equipment and ambient light conditions in a workshop. The variable delay time, adjustable from 0.1 to 1.0 seconds, can be set to keep the lens dark for a short period after the arc stops, protecting against residual brightness from hot metal.

Everyday Home Use

For home workshops, hobbyists, or DIY enthusiasts engaged in metalwork, the automatic darkening function offers a significant convenience over traditional fixed-shade masks. It eliminates the need to nod the head to flip a visor down, allowing the user to see clearly in the light state (DIN4) to position the electrode, with protection automatically engaging upon striking the arc. The battery-powered operation provides cordless freedom, and the broad operating temperature range makes it suitable for use in unheated garages or sheds.

Benefits and Buying Value

The value of this welding mask lies in its automated protection system and its adjustable features, which aim to offer a tailored safety solution for various welding scenarios without complex setup.

Reuse and Low Maintenance

The mask is designed for repeated use across multiple projects. Maintenance is minimal, primarily involving occasional cleaning of the lens and shell with a soft cloth and ensuring the battery has charge. The single CR2450 battery is included and is a standard type that can be replaced when depleted, supporting the product's long-term usability. The PP shell is chosen for its practical resistance to the typical knocks and sparks found in a welding environment.

Why Choose This Product

This automatic darkening mask presents a clear alternative to passive welding helmets by providing instant, automated shading. Its standout points include the very fast 0.03-second reaction time, the inclusion of two arc sensors for reliable detection, and the granular control offered by stepless sensitivity and delay adjustments. When considering options, this product offers these specific, measurable features—like its DIN4-DIN13 shading range and 122.5x35mm view area—as concrete differentiators for users prioritising responsive eye protection and operational control.
