35mm Hinge Punch Locator Tool for Accurate Cabinet and Wardrobe Door Installation

Installing hinges on cabinet doors, wardrobes, and other furniture requires precise marking and drilling to ensure a neat, functional finish. This 35mm hinge punch locator is a dedicated DIY tool designed to eliminate guesswork and inconsistent results. Made from aluminium alloy, it provides a lightweight yet durable guide that simplifies the process of positioning common 35mm extended arm and middle bend hinges. With four adjustable margin settings and a built-in carbide-tipped blade, this tool helps achieve professional-looking installations for home improvement projects without specialist woodworking skills.

Features and Construction

The construction of this hinge locator focuses on practical functionality for repeated use in DIY settings. Its design incorporates specific features that address the key challenges of hinge installation: accurate placement and clean marking for screw holes.

Material and Build

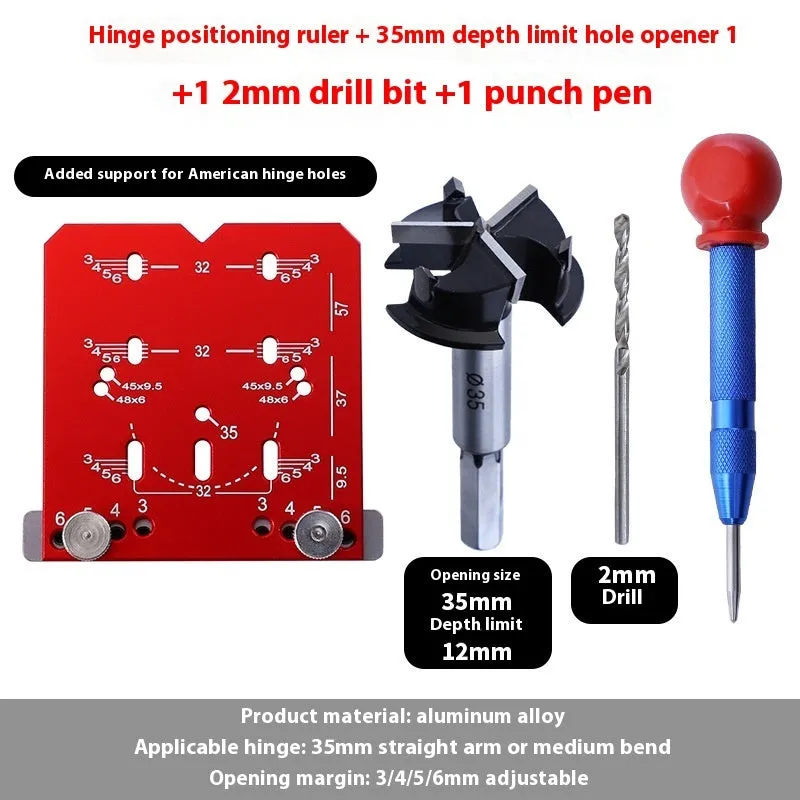

The main body of the locating rule is constructed from high-quality aluminium alloy. This material choice results in a tool that is both lightweight for easy handling and sufficiently rigid to maintain accuracy during use. The integrated marking blade is made from a hard alloy, specifically carbide, which has undergone a high-temperature heat treatment process. This treatment increases the blade's hardness, helping it stay sharp and wear-resistant through multiple marking actions on wood surfaces.

Size and Practical Fit

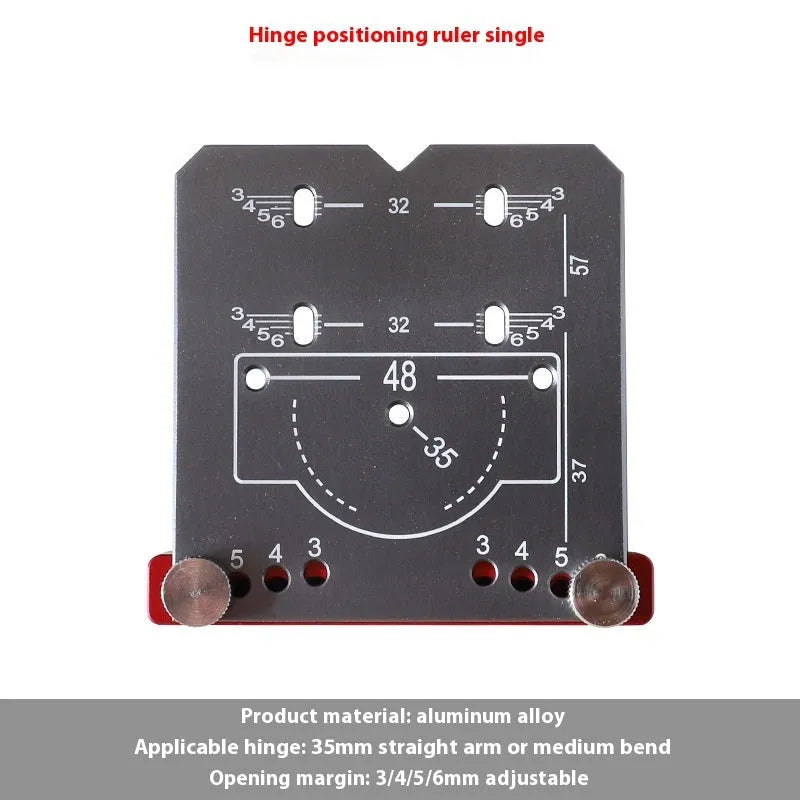

This tool is specifically sized and configured for 35mm hinges, which are a standard fitting for many cabinet doors and wardrobe systems. The adjustable margin feature provides four specific setback options: 3mm, 4mm, 5mm, and 6mm. This range covers common installation requirements, allowing you to select the precise inset needed for your particular door and hinge style, ensuring a consistent gap and smooth operation.

Uses and Placement

This tool has a clear, defined use case centred on furniture assembly and home improvement. It is intended for scenarios where accuracy and repeatability are important for both aesthetic and functional results.

Event or Professional Use

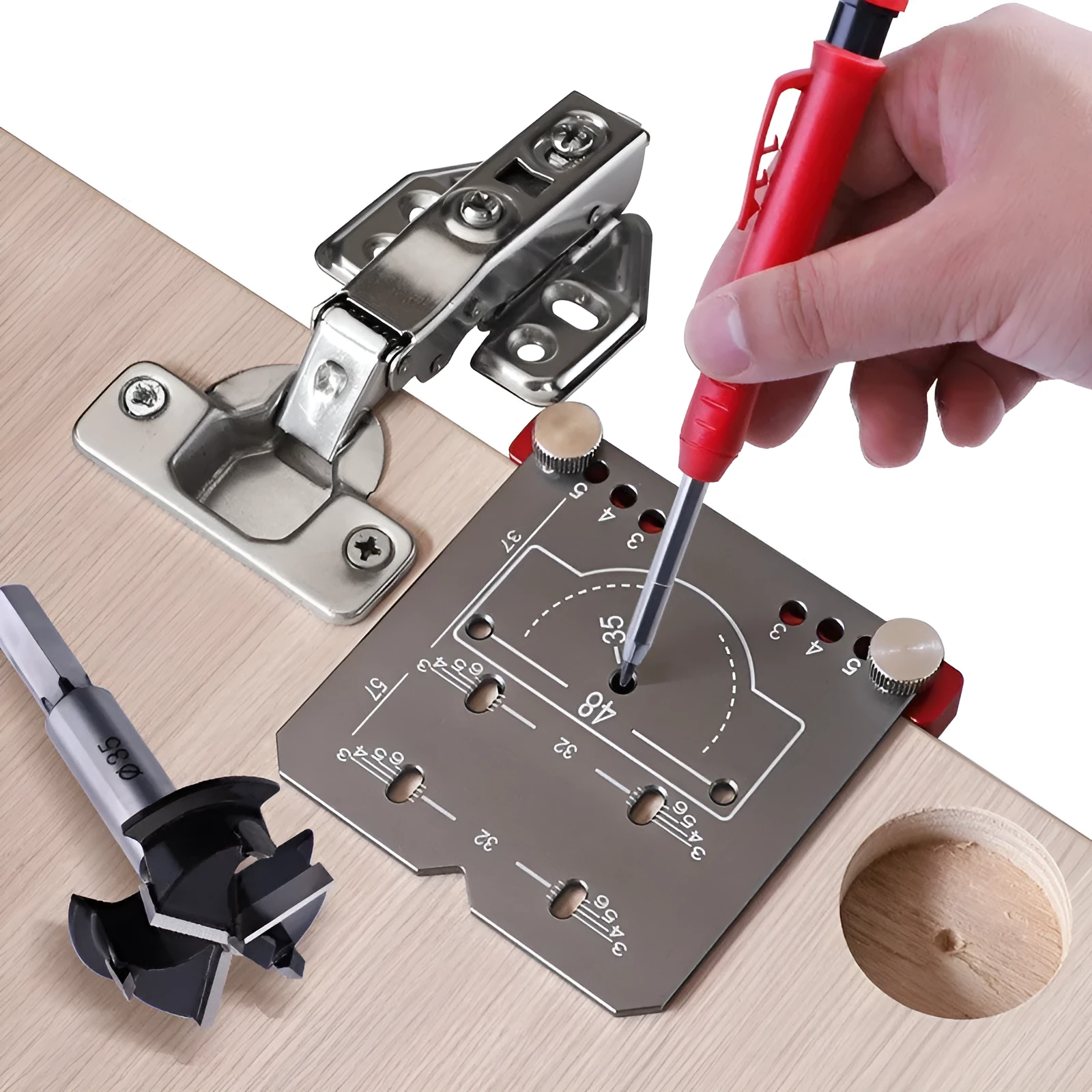

For professional tradespeople or serious DIY enthusiasts undertaking multiple installations, this locator offers efficiency and consistency. The carbide blade creates a clear, deep centre mark for drilling, reducing bit wander and ensuring screw holes are exactly where they need to be. This can speed up the process of fitting multiple doors on a single cabinet or wardrobe unit, as the adjustable margin allows for quick changes without needing separate measuring tools.

Everyday Home Use

For the home DIYer fitting a new kitchen cabinet, assembling flat-pack furniture, or renovating a wardrobe, this tool provides a straightforward solution. It removes the complexity of measuring hinge positions with a tape measure and pencil, which can lead to errors. By offering a physical guide with set measurements, it helps even inexperienced users achieve a neat, aligned finish, making furniture assembly more manageable and successful.

Benefits and Buying Value

The value of this product lies in its targeted functionality and the practical problems it solves. It is a single-purpose tool that performs its specific task reliably, contributing to better project outcomes and potentially saving time and materials.

Reuse and Low Maintenance

As a solidly built tool from aluminium alloy with a wear-resistant carbide blade, it is designed for reuse across multiple projects. Maintenance is minimal; simply ensuring it is stored dry will help preserve the blade's edge. Its durability means it can become a permanent part of a DIY toolkit, ready for any future cabinet or door installation needs, offering long-term value from a single purchase.

Why Choose This Product

Choose this hinge punch locator if you require a dedicated, easy-to-use tool for accurately installing 35mm hinges. Its primary advantages are the four pre-set margins that eliminate calculation errors and the quality carbide blade that provides a positive drilling mark. It is a practical investment for anyone regularly undertaking furniture assembly, offering a higher likelihood of a professional finish compared to improvised measuring methods.
